  • Chromapix is a LED matrix module capable of projecting volumetric graphics, simulating a 3D effect. The generated effect is a wall of LEDs, performing a long through projection of sharp beams in the air which are brighter than conventional LED screens. It offers great flexibility of control with various static alphanumeric and gobo pattern, dynamic pattern, with speed, index, rotation, background and foreground control, dimmer fade which can be controlled by DMX, ArtNet and KlingNet.

    Features:
    25(5x5 matrix)x10W Osram Ostar RGBW / FC LEDs
    9° Optics through high-definition narrow collimators
    DMX, Art-Net and Kling-Net control protocol supported
    Pixel control: individual control of each single LEDs
    Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background colours, dimmer fade, speed and rotation

    LIGHT SOURCE
    • Source:
      25(5x5)x10
      W
      RGBW Osram LED
    • Luminous flux:
      7'431
      lm
    • Lux:
      26'204
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      6
      °
    • Field angle:
      15
      °
    • Pixel pitch:
      100
      mm
    • Lens diameter:
      35
      mm
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      2.800 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:
      on board mechanics for modular assembly of multiple fixtures
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, Art-Net, Kling-Net
    • DMX channels:
      3 / 4 / 6 / 10 / 100 / 105
      channel
    • Pixel control:
      pixel2pixel control
    • Display:
      LCD display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      315
      W
    • Max power consumption (at 120 V):
      320
      W
    • Output (at 230 V):
      6
      units on a single power line
    PHYSICAL
    • Cooling:
      active, silent operation
    • Sospension and fixing:
      bracket for truss rigging and hardware for connection of more units
    • Signal connection:
      Neutrik XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      500x500x115
      mm
    • Weight:
      12
      kg
    ITEMS REF.
    Accessory Code
    Description
    CHROMAPIX (optional)

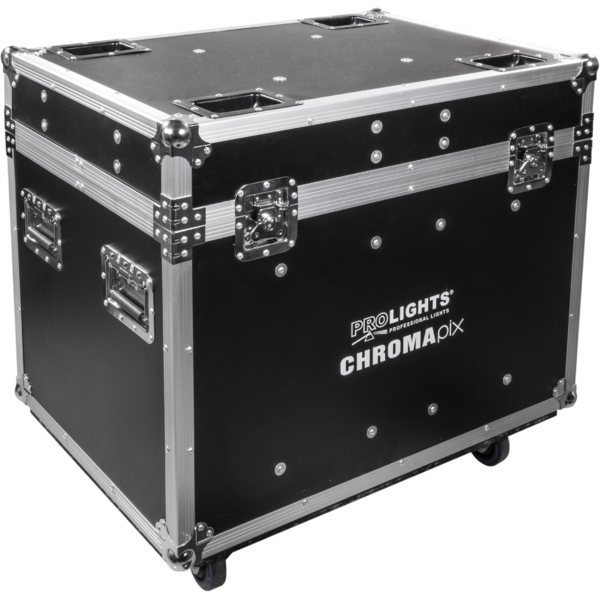

    Flightcase with internal compartments designed to contain 4pcs CHROMAPIX modules
