ECLFRESNEL
PROLIGHTS

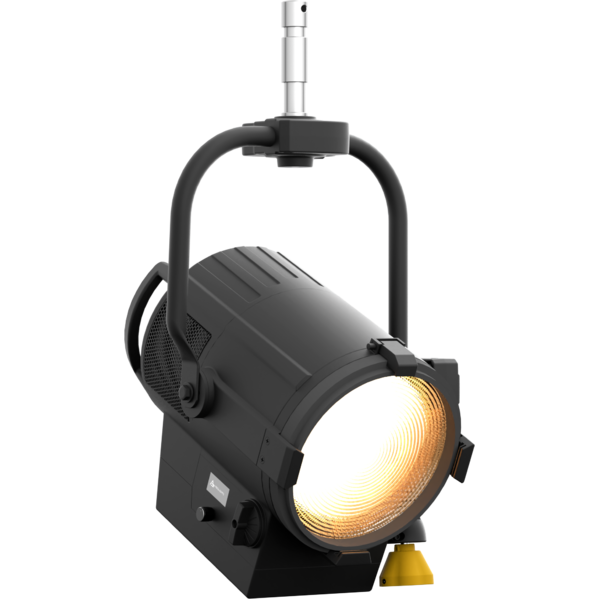

EclFresnel

LED Fresnel with HB white source, to replace 1.000W lamp

EclFresnel is the LED replacement for a standard tungsten 1.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a powerful source that focuses on outstanding colour rendition. The EclFresnel adds all the advantages of LED to the Fresnel.

Main features:

  • TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
  • Fresnel lens with 17° to 66° zoom range
  • Silent operation for studio and stage use

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 230W high-power white LED
  • CCT: (TU) 3.200 K - (DY) 5.600
  • Luminous flux: (TU) (17°) 10'842 lm (66°) 13'320 @Full
  • Luminous flux: (DY) (17°) 12'546 lm (66°) 15'623 lm @full
  • Lux: (TU) (17°) 3'728 lx - (66°) 1'019lx @5 m full
  • Lux: (DY) (17°) 4'260 lx - (66°) 1'182lx @5 m full
  • CRI: (TU) >98 - (DY) >95
  • R9: (TU) >90 - (DY) >90
  • TLCI: (TU) >98; (DY) >95
  • TM30 Rf: (TU) >92; (DY) >89
  • TM30 Rg: (TU) >99; (DY) >98
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 17° - 66° manual
  • Lens diameter: 8'' - 200mm / 0.31''
  • Lens type: fresnel zoom lens
  • Other: barndoor and gel frame included
COLOUR SYSTEM
  • Colour mixing: white
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjust of dimmer throught menu and knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: included filter frame, 8 doors barndoor, spigot
  • Pan range: (for pole operated version) 360° with manual regulation
  • Tilt range: (for pole operated version) 340° with manual regulation
  • Body: Sturdy die-cast aluminium body
  • Body colour: black (RAL9004), white finishing available (RAL9010)
  • Other: Spigot 28 mm
CONTROL
  • Supported Protocols: DMX512, RDM, rotatory knob
  • DMX channels: ch1: 1 / 2 - ch2: 2 / 3 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 220W
  • Output (at 230V): 17 units on a single power line
  • Power factor: 0,95
PHYSICAL
  • IP rating: IP20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 283x440x343mm / 11.14''x17.32''x13.5''
  • Dimensions with PO system (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
  • Weight: 7,5kg / 16.53lbs
  • Weight with PO system: 9,7kg / 21.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
R9
Lumen
Finishing
ECLFRESNELTU
ECLFRESNELTU
3.200 K
98
90
13'320 lm
Black
ECLFRESNELDY
ECLFRESNELDY
5.600 K
95
90
15'623 lm
Black
ECLFRESNELPTU
ECLFRESNELPTU
3.200 K
98
90
13'320 lm
Black
ECLFRESNELPDY
ECLFRESNELPDY (END OF LIFE)
5.600 K
95
90
15'623 lm
Black
ECLFRESNELTUWH
ECLFRESNELTUWH
3.200 K
98
90
13'320 lm
White
ECLFRESNELDYWH
ECLFRESNELDYWH
5.600 K
95
90
15'623 lm
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
ECLFRSBD
ECLFRSBD
(Included)
Barn door with directional flaps to adjust the light beam
FCLECLFRS
FCLECLFRS
(Optional)
Flight case for 4x ECLFRESNEL
ECLFRSTPG
ECLFRSTPG
(Included)
Filter frame for ECLFRESNEL series
ECLFRSNL
ECLFRSNL
(Optional)
Narrow angle lens for ECLFRESNEL TU and DY fresnel projectors
EFSBUFDS
EFSBUFDS
(Optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfresnel_A4_DATASHEET_(IT).pdf(16/06/2021)466KB
Letter datasheetEclfresnel_A4_DATASHEET_(EN).pdf(31/10/2022)512KB
Tender SpecificationEclfresneltu_TENDER_SPECIFICATION.pdf(20/07/2021)3MB
Tender SpecificationEclfresneldy_TENDER_SPECIFICATION.pdf(20/07/2021)3MB

User manual

File name File size Download
User manualEclfresnel_USER_MANUAL_EN.pdf(31/01/2023)5MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities

File name File size Download
DMX chartEclfresnel_DMX_CHARTS.pdf(03/05/2021)76KB

ECLFRESNELTU Firmware rev. 1.5

manufacturer fixture library (Link) Link
prolights_eclipsefresneltu.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneltu@1ch.xmlDownload
prolights@eclipsefresneltu@3ch.xmlDownload

ECLFRESNELDY Firmware rev. 1.5

manufacturer fixture library (Link) Link
prolights_eclipsefresneldy.d4Download
manufacturer fixture library (Link) Link
prolights_eclipsefresdy_1ch.hedDownload
prolights_eclipsefresdy_2ch1.hedDownload
prolights_eclipsefresdy_2ch2.hedDownload
prolights_eclipsefresdy_3ch.hedDownload
prolights_eclipsefresdy_5ch.hedDownload
manufacturer fixture library (Link) Link

ECLFRESNELPTU Firmware rev. 1.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneltu@1ch.xmlDownload
prolights@eclipsefresneltu@3ch.xmlDownload

ECLFRESNELPDY Firmware rev. 1.5

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

ECLFRESNELPDY Firmware rev. 1.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

ECLFRESNELTUWH Firmware rev. 1.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneltu@1ch.xmlDownload
prolights@eclipsefresneltu@3ch.xmlDownload

Tech docs

File name File size Download
Noise ReportEclfresneltu_NOISE_REPORT.pdf(17/05/2024)610KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB .PRL No software needed see User Manual
NET CABLE .EHEX Professional Uploader Guide
NET CABLE .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product   accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1.0
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 03/07/2021 Added OFF and SILENT fan modes.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 04/12/2018 10 second default display backlight Rev. 1.0

Info Request

News

PROLIGHTS is heading to ISE 2026 with the debut of four new products
January 30, 2026
PROLIGHTS is heading to ISE 2026 with the debut of four new products
PROLIGHTS will be at Integrated Systems Europe (ISE) from February 3-6, 2026 at Fira Barcelona for a dynamic showcase of its newest lighting solutions. At Booth 6Q500, visitors can join live demos and get access to exclusive previews, with four brand-new
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
January 30, 2026
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
PROLIGHTS unveils Muse Profile70CT+ , a moving LED profile designed to deliver uncompromised light quality for theatres, broadcast studios, and film sets. Equipped with a powerful 1000W 6-colour LED source with additive colour mixing, Muse Profile70CT+
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
January 26, 2026
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
PROLIGHTS introduces Astra Profile300LTIP and Astra Profile500LTIP , two new IP65-rated long-throw moving profiles designed to deliver powerful output, flexible optics, and reliable performance from small rigs to large arena productions indoor or out.
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
January 19, 2026
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
PROLIGHTS expands its modular blinder range with SunRise 4FLX , a new four-cell model that transforms the classic 4-lite blinder into a high-performance solution for indoor and outdoor stages. Making its debut at ISE 2026 , SunRise  4FLX is available
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
January 15, 2026
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
After more than two years of design, research, planning, and construction, Our Wondrous Planet , the most expansive science and biodiversity gallery in Museums Victoria's history, has opened at Melbourne Museum , offering visitors a breathtaking multisensory
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
January 07, 2026
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
The Grand Egyptian Museum (GEM) , officially inaugurated on 1 November 2025 on the Giza plateau, is the world's largest museum dedicated to a single civilisation. It houses a collection of over 100,000 artefacts, with nearly 50,000 on display, just a
PROLIGHTS Illuminates the Grand Egyptian Museum
January 02, 2026
PROLIGHTS Illuminates the Grand Egyptian Museum
Near one of the Great Pyramid of Khufu at Giza has officially opened a new cultural landmark of the modern era: the Grand Egyptian Museum (GEM) . Described as the world's largest archaeological museum, the GEM houses around 100,000 artefacts spanning
A PROLIGHTS Light Show at Kënga Magjike 2025
December 30, 2025
A PROLIGHTS Light Show at Kënga Magjike 2025
Kënga Magjike , the long-running Albanian music competition created and hosted by Ardit Gjebrea and organised by Televizioni Klan, reached an important milestone with its 25th edition. On the occasion of this special edition, bringing together both
PROLIGHTS lights Avi Avital's “Italy” project at Viva Musica! Festival in Bratislava
December 17, 2025
PROLIGHTS lights Avi Avital's “Italy” project at Viva Musica! Festival in Bratislava
For the final concert of the 21st Viva Musica! festival in Bratislava, virtuoso mandolinist Avi Avital appeared with his new ensemble Between Worlds, presenting “Italy”: a programme dedicated to Italian music, with a particular focus on the traditions
PROLIGHTS launches EclFresnel CT+XS: compact 120W 6-color LED Fresnel with 10°-75° zoom
December 15, 2025
PROLIGHTS launches EclFresnel CT+XS: compact 120W 6-color LED Fresnel with 10°-75° zoom
PROLIGHTS launches the EclFresnel CT+XS , a compact 120W LED Fresnel designed to replace classic 300W tungsten units while delivering outstanding colour fidelity and silent operation for broadcast, theatre and corporate environments. The fixture outputs
December 12, 2025
"Lars Tunbjörk: Landet utom sig” exhibition lit with PROLIGHTS
The exhibition “ Lars Tunbjörk: Landet utom sig ” , staged in Gallery 3 at Kulturhuset Stadsteatern in Stockholm , traces the work of the renowned Swedish photographer devoted to a Sweden in transition. The show presents the complete series, complemented
PROLIGHTS launches HaluStrip Duo: dual-layer IP65 linear bar combining beams and pixels
December 05, 2025
PROLIGHTS launches HaluStrip Duo: dual-layer IP65 linear bar combining beams and pixels
PROLIGHTS launches HaluStrip Duo , a one-metre dual-layer LED strip that fuses high-power warm-white beams with a high-brightness RGB+WW pixel surface in a modular frame. Designed for stage and broadcast, it delivers tight long-throw beams alongside video

Subscribe to our Newsletter

Loading...
