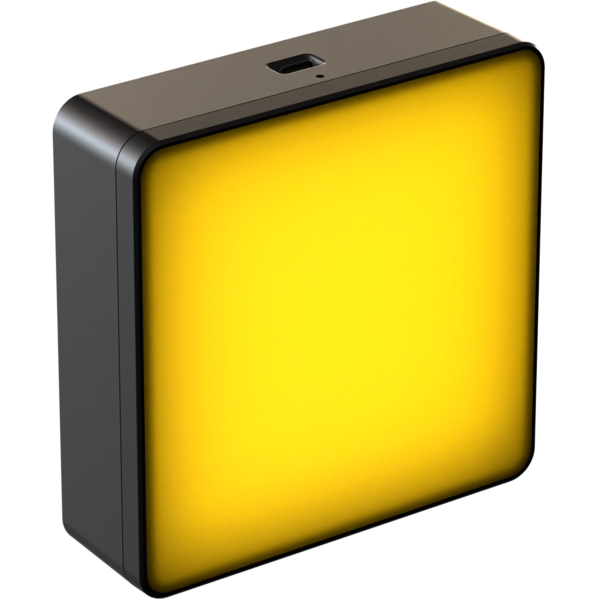

EclNanoPanel TWC

ORDER CODE: ECLNANOPANELTWC

Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered

The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire with a surprisingly powerful 1,800-lumen output.

This compact fixture has the same colour technology as the other soft lights, producing rich colours, high-quality white tones, colour gel matching, and onboard pixel cinema effects.

The EclNanoPanel TWC has three precision encoders with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the four sections has individual or simultaneous control, allowing to play customizable, cinematic effects through its FX engine or from a console.

Magnetized beam-shaping optical accessories are available, including eggcrates, barndoors, diffusers, and threads for easy mounting on stands or camera rigs.

The fixture is controlled from its user interface or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

SPEKTRA

Main features:

  • Compact-sized soft light with wireless control (CRMX and W-DMX) and battery-powered
  • 30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output
  • Magnetized beam-shaping optical accessories are available
See variants

PHOTO GALLERY

EclNanoPanel TWC
EclNanoPanel TWC

Technical specifications

LIGHT SOURCE
  • Source: 30W RGB + Warm White LEDs
  • Luminous flux: 1'829 @3.200 K with LD filter
  • Lux: 690lx @1 m
  • CRI: 94,6 @3.200 K; 94,9 @5.600 K
  • R9: 97,1 @3.200 K; 96 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 97,7 @3.200 K; 89,3 @5.600 K
  • TM30 Rg: 102,5 @3.200 K; 102,3 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 105°
  • Field angle: 159°
  • Lens type: magnetic light density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
  • CCT: Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2,800 K - 10,000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects
  • FX generator: 4 controllable sections
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX + WDMX
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Stand Alone: selectable mode through 3 rotatory knobs
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 36000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOX1+ENPTWCYCABLE (not included)
BATTERY
  • Battery: 11.1V lithium
  • Estimated battery life: up to 2 / 6 / 8 / 12 / 18 h (selectable)
  • Recharge connection: USB type C
  • Recharge time: 2,5h (max)
  • Battery level indicator: shown on display
CONNECTIONS
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Adaptors: USB type C to XLR connectors
  • Low Voltage DC connector: USB type C
ELECTRICAL
  • Mains power supply: DC 12V
  • Max power consumption (230V): 32W
  • Power factor: >0,97
PHYSICAL
  • IP rating: IP20
  • Cooling: fan-free with natural convection
  • Housing: Die-cast aluminium
  • Finish: black
  • Operating temperature: Ta 0 to +45 °C (+32 to +113 °F)
  • Dimensions (WxHxD): 150x150x69.5mm / 5.91''x5.91''x2.74''
  • Weight: 1,2kg / 2.65lbs
INSTALLATION
  • Mounting points: M5 and 1/4" threaded mounting points
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

ENPTWCBD
ENPTWCBD
(Optional)
Barn door with 4 directional flaps to adjust the light beam
ENPTWCAS
ENPTWCAS
(Optional)
Fixing system with suction cup for ECLNANOPANELTWC
ENPTWCFILTERINT
ENPTWCFILTERINT
(Optional)
Front intensified diffusion filter for ECLNANOPANELTWC
ENPTWCFILTERHD
ENPTWCFILTERHD
(Optional)
Front high diffusion filter (less output) for ECLNANOPANELTWC
ENPTWCFILTERMD
ENPTWCFILTERMD
(Optional)
Front medium diffusion filter for ECLNANOPANELTWC
ENPTWCFILTERLD
ENPTWCFILTERLD
(Included)
Front low diffusion filter (more output) for ECLNANOPANELTWC
ENPTWCEC30
ENPTWCEC30
(Optional)
30 degree egg crate for ECLNANOPANELTWC
ENPTWCEC60
ENPTWCEC60
(Optional)
60 degree egg crate for ECLNANOPANELTWC
ENPTWCEC4C
ENPTWCEC4C
(Optional)
4 chamber egg crate for ECLNANOPANELTWC
ENPTWCRMP
ENPTWCRMP
(Optional)
Rear metal plate for ECLNANOPANELTWC
ENPTWCSA
ENPTWCSA
(Optional)
Spigot adapter for ECLNANOPANELTWC
ENPTWCMP4X1
ENPTWCMP4X1
(Optional)
Metal plate to hold multiple ECLNANOPANELTWC together in a 4X1 linear format
ENPTWCMP2X2
ENPTWCMP2X2
(Optional)
Metal plate to hold multiple ECLNANOPANELTWC together as a 2X2 matrix
ENPTWCMP2X1
ENPTWCMP2X1
(Optional)
Metal plate to hold multiple ECLNANOPANELTWC together in a 2X1 linear format
ENPTWCPAJ
ENPTWCPAJ
(Optional)
Position articulated joint for ECLNANOPANELTWC
ENPTWCPAJSPG
ENPTWCPAJSPG
(Optional)
16 mm spigot for ENPTWCPAJ (ECLNANOPANELTWC)
ENPTWCMAG
ENPTWCMAG
(Optional)
Fixing system with magnet for ECLNANOPANELTWC and ECLSOFTTUBE100
EST100MAGADP
EST100MAGADP
(Optional)
M10 to M5 adapter to use ENPTWCMAG with ECLNANOPANELTWC and ECLSOFTTUBE100
ENPTWCMAGADP
ENPTWCMAGADP
(Optional)
M10 to 1/4'' adapter to use ENPTWCMAG with ECLNANOPANELTW
EST100FY
EST100FY
(Optional)
Tripod for ECLNANOPANELTWC and ECLSOFTTUBE100
ENPTWCCHARGER
ENPTWCCHARGER
(Included)
Single charger for ECLNANOPANELTWC
ENPTWCYCABLE
ENPTWCYCABLE
(Optional)
Y Cable from USB-C male to XLR 5P male, XLR 5P female and USB-C female
ENPTWCSB
ENPTWCSB
(Optional)
SnapBag for ECLNANOPANELTWC by DoP choice
ENPTWCSG4SB40
ENPTWCSG4SB40
(Optional)
40° SnapGrid for SnapBag for ECLNANOPANELTWC by DoP choice
<b>IR</b> Controller
IR Controller
(Optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclnanopaneltwc_LETTER_DATASHEET_(EN).pdf(15/05/2023)513KB
Letter datasheetEclnanopaneltwc_A4_DATASHEET_(EN).pdf(08/05/2026)368KB
Tender SpecificationEclnanopaneltwc_TENDER_SPECIFICATION.pdf(27/05/2022)4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclnanopaneltwc_DMX_CHARTS.pdf(23/06/2025)1MB

ECLNANOPANELTWC Firmware rev. 1.7

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclnanopaneltwc_3D.skp(09/06/2022)121KB
2DEclnanopaneltwc_CAD_2D.dwg(09/06/2022)476KB
3DEclnanopaneltwc_CAD_3D.dwg(09/06/2022)515KB
2D cad symbolsEclnanopaneltwc_CAD_2DSYMBOLS.dwg(09/06/2022)48KB
Technical drawingEclnanopaneltwc_TECHNICAL_DRAWING.pdf(09/06/2022)67KB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(20/05/2026)321MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/06/2022)137KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 23/06/2025 New Function:
  • Added "Run Time Trend" in Advanced Menu. This feature lets you decide how the RGBW channels behave when a run time is applied. You can choose between two modes:
  1. Dynamic (default) =
    • The color mix stays consistent across all run time values.
    • To achieve this, the R, G, B, and W channels are limited to a specific percentage.
    • This ensures that the xy color coordinates are always preserved, regardless of the selected run time.
  2. Linear =
    • Each RGBW channel has full DMX range (0-255), regardless of the selected run time.
    • However, this means that color mixing may vary between different run times.
    • That's because the maximum intensity of each color adjusts based on the run time, so the xy color coordinates are not guaranteed to remain the same.
Note:
  • Added to control channel:
    •  RUN TIME DYNAMIC = range dmx 154-155
    •  RUN TIME LINEAR = range dmx 156 157
 Rev. 1.0

Info Request

News

Lucidiscena expands its dry hire inventory with 500 PROLIGHTS fixtures: HaluPix Duo, HaluStrip Duo and SunBar FLX
May 21, 2026
Lucidiscena expands its dry hire inventory with 500 PROLIGHTS fixtures: HaluPix Duo, HaluStrip Duo and SunBar FLX
Lucidiscena is investing in innovation and expanding its dry hire inventory with three PROLIGHTS solutions: HaluPix Duo , HaluStrip Duo and SunBar FLX . A major investment totaling 500 fixtures, set to strengthen its offer for the Italian market and meet
Olen Cesari Enchants Tirana with PROLIGHTS
May 19, 2026
Olen Cesari Enchants Tirana with PROLIGHTS
Renowned violinist Olen Cesari , the Albanian-born artist celebrated worldwide for his ability to blend classical virtuosity with contemporary expression, returned to the Palazzo dei Congressi in Tirana , one of the capital's most prestigious stages and
PROLIGHTS at the Heart of Two New Futuroscope Attractions
May 15, 2026
PROLIGHTS at the Heart of Two New Futuroscope Attractions
Futuroscope , the renowned technology-driven theme park near Poitiers , France , has opened two new attractions: La Serre des Mondes and Mission Bermudes , both featuring PROLIGHTS lighting solutions supplied by ESL . The two projects addressed very different
HaluPix Duo Powers Sombr at Coachella 2026
May 04, 2026
HaluPix Duo Powers Sombr at Coachella 2026
The 2026 edition of the Coachella Valley Music and Arts Festival , held across two weekends in April at the Empire Polo Club in Indio, California, once again set the standard for large-scale festival production. On the Outdoor theatre stage, alt-rock
Gazzelle live at Circo Massimo and San Siro with PROLIGHTS
April 30, 2026
Gazzelle live at Circo Massimo and San Siro with PROLIGHTS
Italian singer-songwriter Gazzelle brought his music to two of Italy's most iconic venues, performing at Circo Massimo in Rome and San Siro Stadium in Milan . On both occasions, PROLIGHTS fixtures played a central role in the lighting design, contributing
PROLIGHTS launches Smart ParNeo: IP-rated battery-powered spotlight
April 28, 2026
PROLIGHTS launches Smart ParNeo: IP-rated battery-powered spotlight
PROLIGHTS launches Smart ParNeo , an IP-rated battery-powered spotlight that expands the iconic SmartBat series with a more flexible and versatile design. Combining portability, advanced colour control and adaptable mounting options, Smart ParNeo is designed
PROLIGHTS Takes Centre Stage at LightNeq Session 2026 in Prague
April 27, 2026
PROLIGHTS Takes Centre Stage at LightNeq Session 2026 in Prague
This year's LightNeq Session , the three-day professional event for the technical production industry held in Běchovice , Prague , set a new attendance record, bringing together more than 160 specialists from rental companies, theatres, television studios
PROLIGHTS Astra Hybrid260IP Achieves Full Global Compliance, Including US FDA CDRH Certification
April 17, 2026
PROLIGHTS Astra Hybrid260IP Achieves Full Global Compliance, Including US FDA CDRH Certification
The PROLIGHTS Astra Hybrid260IP has completed its international compliance portfolio with the receipt of US FDA CDRH certification for its 260W white phosphor laser source. The fixture now holds CE , RCM , FCC , cTUVus , and FDA CDRH approval, and is
Music & Lights announces the upcoming arrival of 3,000 sqm of URMIII for the Italian market.
April 09, 2026
Music & Lights announces the upcoming arrival of 3,000 sqm of URMIII for the Italian market.
Music & Lights , exclusive distributor for the Italian market of Unilumin Rental solutions, announces the upcoming arrival of 2,000 sqm of URMIII P2.6 U-Shield   and 1,000 sqm of URMIII P3.9 Outdoor. Two complementary stocks, indoor and outdoor, designed
Astra Profile500LTIP Chosen for Finland's 27th KONGRESSI Meetings & Events
April 08, 2026
Astra Profile500LTIP Chosen for Finland's 27th KONGRESSI Meetings & Events
Now in its 27th edition, KONGRESSI meetings & events , one of Finland 's leading b2b events for the meetings and events industry, brought together the key buyers, professionals and service providers of the sector at Helsinki Expo and Convention Centre
Music & Lights at MIR 2026 with the Latest Innovations and a Large Demo Area
April 07, 2026
Music & Lights at MIR 2026 with the Latest Innovations and a Large Demo Area
Music & Lights will be exhibiting at MIR 2026 , the leading Italian trade show dedicated to multimedia integration and professional entertainment technologies, taking place at the Rimini Expo Center from 12 to 14 April 2026. At Stand A3/087, the largest
PROLIGHTS Returns to MIR 2026 with the Premiere of SunBar FLX
April 07, 2026
PROLIGHTS Returns to MIR 2026 with the Premiere of SunBar FLX
PROLIGHTS will be exhibiting at MIR 2026 , the leading Italian trade show for multimedia integration and professional entertainment technologies, held at the Rimini Expo Center from 12 to 14 April. At Stand A3/087, visitors will have the opportunity to
Subscribe to our Newsletter
Loading...
