EclNanoPanel TWC
ORDER CODE: ECLNANOPANELTWC
Share me

Immagine Principale
  • ECLNANOPANELTWC
  • ECLNANOPANELTWC
  • ECLNANOPANELTWC

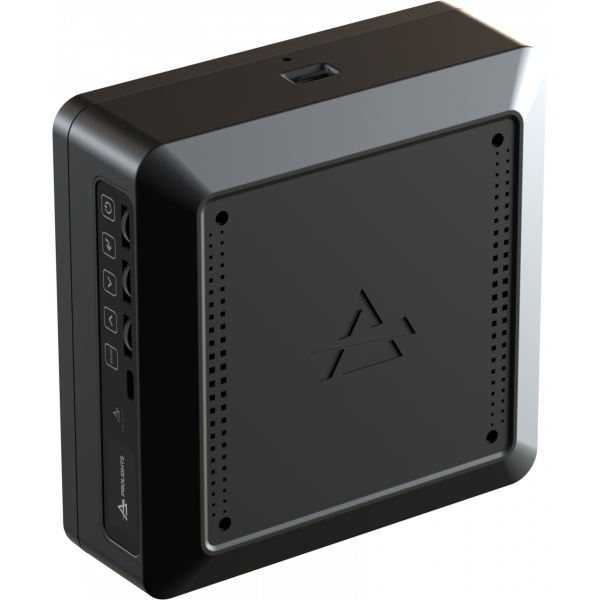

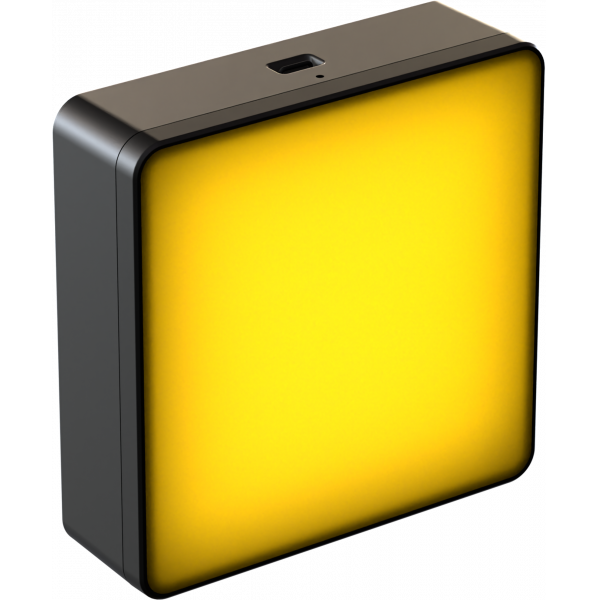

    • The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire with a surprisingly powerful 1,800-lumen output.

    This compact fixture has the same colour technology as the other soft lights, producing rich colours, high-quality white tones, colour gel matching, and onboard pixel cinema effects.

    The EclNanoPanel TWC has three precision encoders with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

    Each of the four sections has individual or simultaneous control, allowing to play customizable, cinematic effects through its FX engine or from a console.

    Magnetized beam-shaping optical accessories are available, including eggcrates, barndoors, diffusers, and threads for easy mounting on stands or camera rigs.

    The fixture is controlled from its user interface or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

    Features:
    Compact-sized soft light with wireless control (CRMX and W-DMX) and battery-powered
    30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output
    Magnetized beam-shaping optical accessories are available

    LIGHT SOURCE
    • Source:
      30
      W
      RGB + Warm White
    • Luminous flux:
      1'829
      lm
      @3.200 K with LD filter
    • Lux:
      690
      lx
      @1 m
    • CRI:
      94,6 @3.200 K; 94,9 @5.600 K
    • R9:
      97,1 @3.200 K; 96 @5.600 K
    • TLCI:
      92 @5.600 K
    • TM30 Rf:
      97,7 @3.200 K; 89,3 @5.600 K
    • TM30 Rg:
      102,5 @3.200 K; 102,3 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      105
      °
    • Field angle:
      159
      °
    • Lens type:
      magnetic light density
      diffusion panel (interchangeable)
    • Additional optics:
      see available accessories
    COLOUR SYSTEM
    • Colour control:
      XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
    • Colour mixing:
      RGB + Warm White
    • CCT:
      CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
    • White presets:
      2,800 K - 10,000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer, colours
    • Pixel patterns:
      pre-programmed pixel macros and cinema lighting effects patterns
    • FX generator:
      4
      controllable sections
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of intensity, CT, colour correction from knob
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Body:
      aluminium die-casting
    • Body colour:
      black
    CONTROL
    • Protocols:
      CRMX+W-DMX, DMX512, RDM
    • Stand Alone:
      selectable mode through 3
      rotatory knobs
    • Wireless Control:
      included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1+ENPTWCYCABLE) not included
    • IR:
      infrared sensor controlled by remote (included in the pack, not included in single unit)
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      0° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 36.000 Hz
    ELECTRICAL
    • Max power consumption:
      32 W
    • Mains power supply:
      DC 12V
    • Power factor:
      >0,97
    BATTERY
    • Battery:
      11.1
      V
      lithium
    • Estimated battery life:
      (selectable) 2 h - 6 h - 8 h - 12 h - 18
      h
    • Re-charge connection:
      USB type C
    • Re-charge time:
      2,5
      h/max
    • Battery status:
      shown on display
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      M5 and 1/4'' threaded insert for easy installation
    • Adaptors:
      USB type C to XLR connectors
    • Low Voltage DC connector:
      USB type C

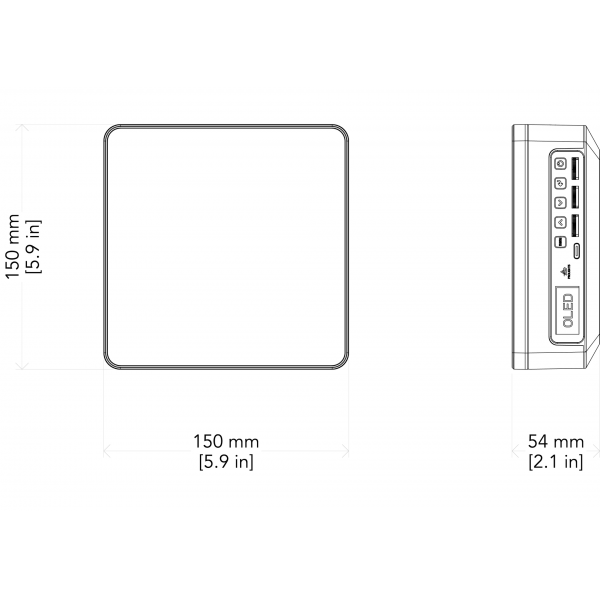

    • Dimensions (WxHxD):
      150x150x69,5
      mm
    • Weight:
      1,2
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ECLNANOPANELTWC
    • 1 x battery charger
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCBDENPTWCBD
    Barn door with 4 directional flaps to adjust the light beam
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCASENPTWCAS
    Fixing system with suction cup for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCFILTERINTENPTWCFILTERINT
    Front intensified diffusion filter for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCFILTERHDENPTWCFILTERHD
    Front high diffusion filter (less output) for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCFILTERMDENPTWCFILTERMD
    Front medium diffusion filter for ECLNANOPANELTWC
    ECLNANOPANELTWC (include)
    {ProdottiDaAccessorio}
    ENPTWCFILTERLDENPTWCFILTERLD
    Front low diffusion filter (more output) for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCRMPENPTWCRMP
    Rear metal plate for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCEC4CENPTWCEC4C
    4 chamber egg crate for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCEC30ENPTWCEC30
    30 degree egg crate for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCEC60ENPTWCEC60
    60 degree egg crate for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCMP2X2ENPTWCMP2X2
    Metal plate to hold multiple ECLNANOPANELTWC together as a 2X2 matrix
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCMP4X1ENPTWCMP4X1
    Metal plate to hold multiple ECLNANOPANELTWC together in a 4X1 linear format
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCMP2X1ENPTWCMP2X1
    Metal plate to hold multiple ECLNANOPANELTWC together in a 2X1 linear format
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCSAENPTWCSA
    Spigot adapter for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCPAJENPTWCPAJ
    Position articulated joint for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCMAGENPTWCMAG
    Fixing system with magnet for ECLNANOPANELTWC and ECLSOFTTUBE100
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    EST100MAGADPEST100MAGADP
    M10 to M5 adapter to use ENPTWCMAG with ECLNANOPANELTWC and ECLSOFTTUBE100
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCMAGADPENPTWCMAGADP
    M10 to 1/4'' adapter to use ENPTWCMAG with ECLNANOPANELTW
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    EST100FYEST100FY
    Tripod for ECLNANOPANELTWC and ECLSOFTTUBE100
    ECLNANOPANELTWC (include)
    {ProdottiDaAccessorio}
    ENPTWCCHARGERENPTWCCHARGER
    Single charger for ECLNANOPANELTWC
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCYCABLEENPTWCYCABLE
    Y Cable from USB-C male to XLR 5P male, XLR 5P female and USB-C female
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCSBENPTWCSB
    SnapBag for ECLNANOPANELTWC by DoP choice
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    ENPTWCSG4SB40ENPTWCSG4SB40
    40° SnapGrid for SnapBag for ECLNANOPANELTWC by DoP choice
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    PRL-IRCPRL-IRC
    RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    ECLNANOPANELTWC (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Eclnanopaneltwc_A4_DATASHEET_(EN).pdf 507KB
    Eclnanopaneltwc_LETTER_DATASHEET_(EN).pdf 513KB
    Eclnanopaneltwc_TENDER_SPECIFICATION.pdf 4MB

    User manual

    File name File size Download
    Eclnanopaneltwc_USER_MANUAL_EN.pdf 3MB
    GENERAL_SAFETY_INFORMATION.pdf 12MB
    Eclnanopaneltwc_USER_MANUAL_FR.pdf 3MB
    GENERAL_BATTERY_SAFETY_INFO.pdf 3MB

    DMX chart & personalities

    File name File size Download
    Eclnanopaneltwc_DMX_CHARTS.pdf 423KB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VECTORWORKS_SYMBOLS.vwx 137KB
    ECLNANOPANELTWC Firmware rev. 1.4
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    ECLNANOPANELTWC Firmware rev. 1.3
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    prolights_eclnanopaneltwc_ies files.zip 22KB
    prolights_eclnanopaneltwc_ldt files.zip 18KB
    Eclnanopaneltwc_PHOTOMETRICS_REPORT.pdf 5MB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Eclnanopaneltwc_3D_SKETCHUP.skp 121KB
    Eclnanopaneltwc_2D.dwg 476KB
    Eclnanopaneltwc_3D.dwg 515KB
    Eclnanopaneltwc_2DSYMBOLS.dwg 48KB
    Eclnanopaneltwc_TECHNICAL_DRAWING.pdf 67KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.4 STABLE 04/05/2023 Improvements:
    • Improved wireless indicator symbology.
    Fixed bugs:
    • Switching from Stand Alone CCT to Stand Alone HSI or from Fixed Colors to HSI, the fixture produces a green flash.
    • Switching from White Preset to Manual Colour and switching from Spektra Calibration=OFF to Spektra Calibration=ON, sometimes fixture produces a white flash.
    • Switching from Manual colour to Source emulation, fixture flashes the colour previously selected in Manual Colour.
    • Switching from Fixed Colors to HSI, light source decreases its output intensity.
    • Switching from Stand Alone XY to Stand Alone Effect, the fixture momentarily switches off the light source.
    • Spektra Calibration not correctly working on Standalone.
    		 Rev. 1.0
    1.3 STABLE 15/03/2023 New functions:
    • Spektra Calibration: new modes available
      • ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
      • PURE COLORS:  CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
      • OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.
    Improvements:
    • Switched from FIXTURE TYPE logic to POWER MODE logic.
    • Power Mode selector allows you to select between 3 options:
      • BATTERY:
        - If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged in, fixture will draw power from the mains and status of light output won't be affected (only max power will be higher than what available on battery).
        - If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged out, fixture will draw power from the battery and status of light output won't be affected (only max power will be reduced) .
        - Pressing Power button for 3 seconds without mains present --> fixture will turn on and follow its settings (Standalone or DMX/WDMX)
        - Pressing Power button for 3 seconds while using without mains present --> fixture will turn off.
        - Pressing Power button for 3 seconds while charging --> fixture will turn on and follow its settings (Standalone or DMX/WDMX), or would keep charging if nothing is setted/no signal received
        - Pressing Power button for 3 seconds while using with mains present--> fixture will turn off and start charging.
        - Plugging Mains power for 3 seconds while fixture is off --> fixture will start charghing.
        - Plugging Mains power OFF for 3 seconds while fixture is charghing --> fixture will stop charging and turn off.
      • DC:  Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally. If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button for 3 seconds. If Battery recharge is disabled, battery won't be recharged. Fixture will turn off as soon as AC is plugged out.
      • DC EMERGENCY:  Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally. If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button. If Battery recharge is disabled, battery won't be recharged. Fixture will turn on at full power with 6000K White as soon as AC is missing. To turn off the fixture user can use control channel dedicated parameter or power button on the fixture.
    • Jump prediction added to crossfade channel.
    Fixed bugs:
    • RDM compliance missing of new pids.
    • The switching on and off of the fixture is characterised by a fade.
    • "PARTY" effect of Stand Alone does not work.
    • User Preset pressing the Power botton does not work.
    		 Rev. 1.0

    Info Request
