LumiPix 9UHE

ORDER CODE: LUMIPIX9UHE

9x8W RGBWAP/FC high-efficiency LED source

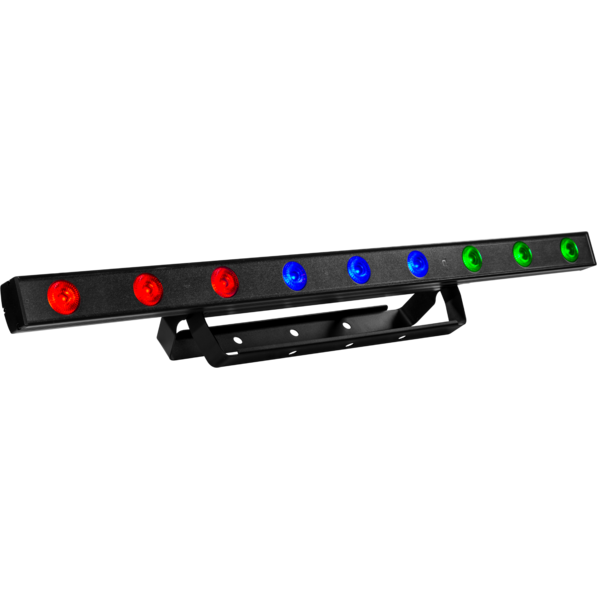

LumiPix 9UHE is a 1 m linear LED batten using an innovative optic system combined with a new light source which performs a colour mixing of 6 primary colours - RGBWA. The light source is composed of 9x8W high-efficiency RGBWAP/FC LED offering a more advanced chromatic synthesis than projectors of the previous generation, with full control of saturation and colour temperature on the whole spectrum. LumiPix 9UHE offers a 3 section control of the LED plate to generate a wide range of dynamic light effects.

Main features:

  • 9x8W RGBWAP/FC high-efficiency LEDs
  • 3 section control of the LED plate, to generate a wide range of dynamic effects
  • Super-slim design and extreme colour precision and light output
  • USB port for USB WIFI transceiver (optional)
  • Flicker-free operations

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 9x8W RGBWAP LEDs
  • Luminous flux: (23°) 2'068
  • Lux: 1'080lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 23°
  • Field angle: 40°
  • Lens diameter: 42mm / 1.65''
  • Additional optics: 25° and 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBWAP / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 6 / 9 / 11 / 18 / 23ch
  • Pixel control: 1 / 3 section control
  • Display: LED display user interface
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: IEC IN/OUT connectors
  • Signal connection: XLR 3p IN/OUT connectors
  • Wireless Connection: optional WIBOX, WDBOX proprietary protocol
  • Data: USB port for USB WIFI transmitter (optional)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 78,5W
  • Output (at 230V): 15 units on a single power line
  • Max power consumption (120V): 79W
  • Output (at 120V): 9 units on a single power line
PHYSICAL
  • IP rating: IP30
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 1000x55x56mm / 39.37''x2.17''x2.2''
  • Weight: 3,23kg / 7.12lbs
INSTALLATION
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>WIFI</b>-USB
WIFI-USB
(Optional)
USB Wi-Fi transreceiver, compatible with WIFIBOX and WDBOX
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
LUMIPARIRCH
LUMIPARIRCH
(Optional)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
<b>WIFI</b>-Box
WIFI-Box
(Optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(Optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
ARCLUMIL15D42
ARCLUMIL15D42
(Included)
Optic lens 22°, D.42mm
ARCLUMIL25D42
ARCLUMIL25D42
(Optional)
Optic lens 25°, D.42mm
ARCLUMIL45D42
ARCLUMIL45D42
(Optional)
Optic lens 45°, D.42mm

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipix9uhe_A4_DATASHEET.pdf(03/12/2020)203KB

User manual

File name File size Download
User manualLumipix9uhe_USER_MANUAL_ITEN.pdf(08/02/2019)1MB

DMX chart & personalities

File name File size Download

LUMIPIX9UHE Firmware rev. 1.2

manufacturer fixture library (Link) Link
prolights_lumipix9uhe.d4Download
manufacturer fixture library (Link) Link
prolights_lumipix9uhe_6ch.hed Download
prolights_lumipix9uhe_9ch.hed Download
prolights_lumipix9uhe_11ch.hed Download
prolights_lumipix9uhe_18ch.hed Download
prolights_lumipix9uhe_23ch.hed Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DLumipix9uhe_CAD_2D.dwg(22/08/2018)2MB
Technical drawingLumipix9uhe_TECHNICAL_DRAWING.pdf(09/05/2019)214KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 12/07/2016 Improved firmware functionality with 24 bytes consoles.
