SOLAR
PROLIGHTS

Solar

ORDER CODE: SOLAR

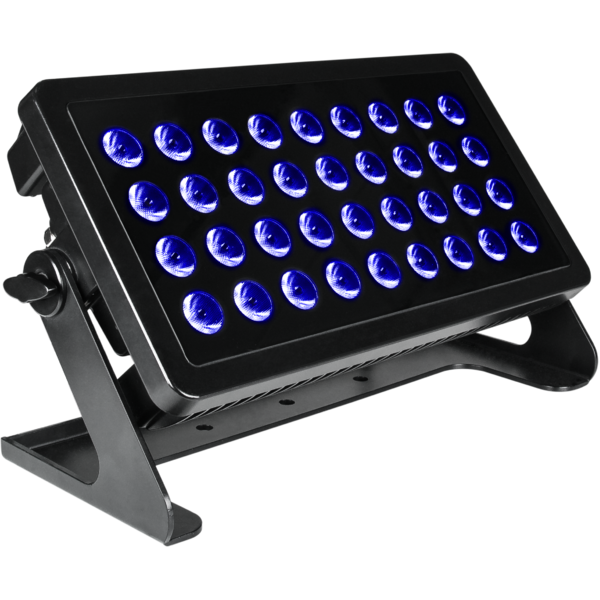

36x8W IP65 full colour wash light with WDMX

SOLAR is a powerful IP65 LED wash light designed to make buildings and outdoor structures really stand out. Ideal for corporate events, festivals and outdoor stage washes, the SOLAR family packs a big punch.

Main features:

  • 36x8W RGBW LEDs deliver powerful output with an outstanding spectrum
  • Available in 25° or 45° lens options
  • Solid IP65 housing with convection cooling

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 36x8W RGBW LED
  • Luminous flux: 9'678
  • Lux: (17°) 5'300lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 17°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: Sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Supported Protocols: DMX512, W-DMX
  • DMX channels: 4 / 6 / 10channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • Display: touch - sensitive LED display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 245W
  • Max power consumption (at 120V): 240W
  • Output (at 230V): 18 units on a single power line
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: moulded IP signal IN/OUT connectors
  • Data connection: W-DMX receiver
  • Power connection: moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 587x303x212mm / 23.11''x11.93''x8.35''
  • Weight: 14,5kg / 31.97lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
ARCLUMIL25D38
ARCLUMIL25D38
(Included)
Optic lens 15°, D.38mm
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
ARCEXAC3
ARCEXAC3
(Optional)
ARCEXDC3
ARCEXDC3
(Optional)
ARCLUMIL45D38
ARCLUMIL45D38
(Optional)
Optic lens 45°, D.38mm
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSolar_A4_DATASHEET_(EN).pdf(25/09/2024)272KB

User manual

File name File size Download
User manualSolar_USER_MANUAL_ITEN.pdf(24/07/2014)2MB

DMX chart & personalities

File name File size Download
DMX chartSolar_DMX_CHARTS.pdf(07/11/2017)38KB

SOLAR Firmware rev. 1.4

manufacturer fixture library (Link) Link
prolights_solar.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
solar_4ch.fdfDownload
solar_6ch.fdfDownload
solar_10ch.fdfDownload
manufacturer fixture library (Link) Link
prolights_solar_ma2.zipDownload
manufacturer fixture library (Link) Link
solar_hog3.zipDownload
manufacturer fixture library (Link) Link
solar 4 channel.fix2Download
solar 6 channel.fix2Download
solar 10 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
2DSolar_CAD_2D.dwg(11/05/2021)8MB
3DSolar_CAD_3D.dwg(09/10/2019)20MB
Technical drawingSolar_TECHNICAL_DRAWING.pdf(11/05/2021)1MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB .PRL No software needed see User Manual
NET CABLE .EHEX Professional Uploader Guide
NET CABLE .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product   accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 12/09/2016 Improved firmware functionality. Rev. 1
