Solar
ORDER CODE: SOLAR
Share me

IP65

Immagine Principale
  • SOLAR
  • SOLAR
  • SOLAR
  • SOLAR
  • SOLAR
  • SOLAR
  • SOLAR

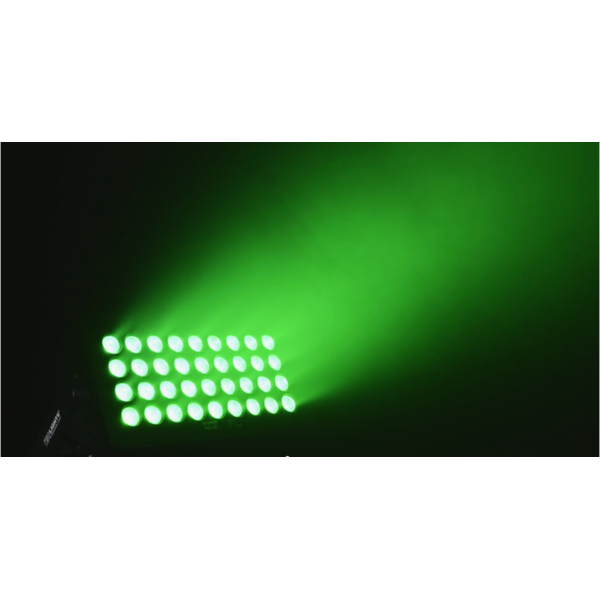

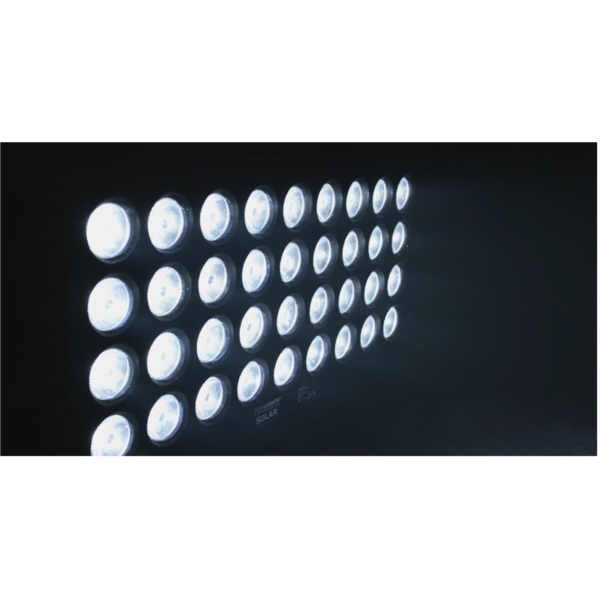

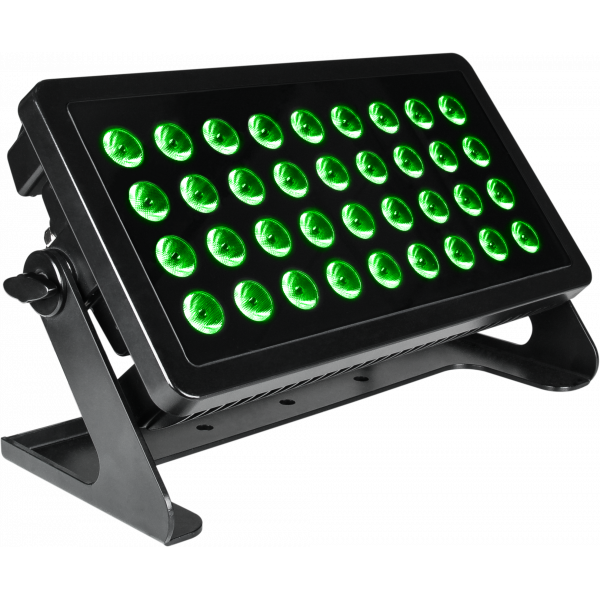

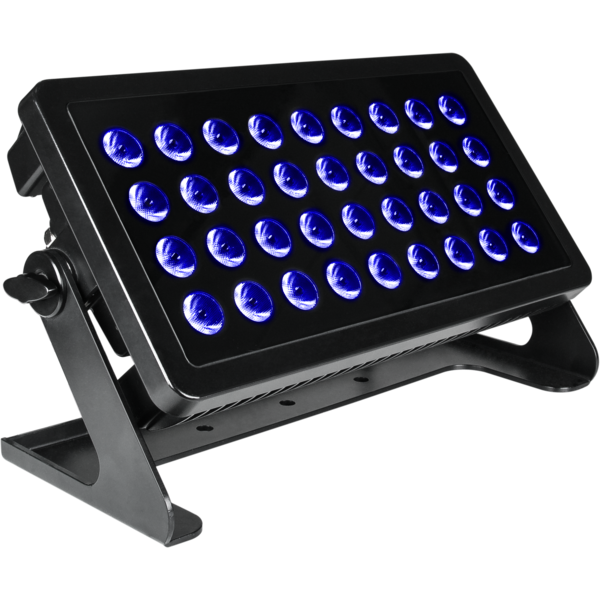

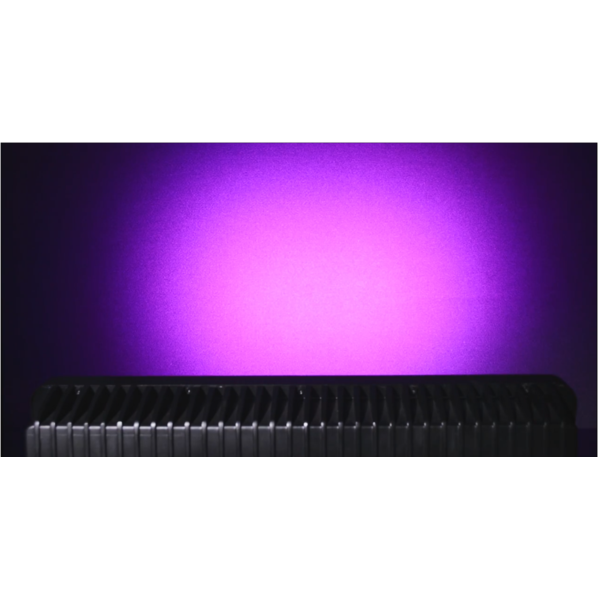

    • SOLAR is a powerful IP65 LED wash light designed to make buildings and outdoor structures really stand out. Ideal for corporate events, festivals and outdoor stage washes, the SOLAR family packs a big punch.

    Features:
    36x8W RGBW LEDs deliver powerful output with an outstanding spectrum
    Available in 25° or 45° lens options
    Solid IP65 housing with convection cooling

    LIGHT SOURCE
    • Source:
      36x8
      W
      RGBW LED
    • Luminous flux:
      9'678
      lm
    • Lux:
      (25°) 5'300
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      25
      °
    • Field angle:
      42
      °
    • Lens diameter:
      38
      mm
    • Additional optics:
      45° (optional)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.200 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, W-DMX
    • DMX channels:
      4 / 6 / 10
      channel
    • Wireless Control:
      included, wireless solution receiver
    • Display:
      touch - sensitive LED display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      245
      W
    • Max power consumption (at 120V):
      240
      W
    • Output (at 230V):
      6
      units on a single power line
    PHYSICAL
    • IP rating:
      65
      for temporary outdoor application, not for fixed installations

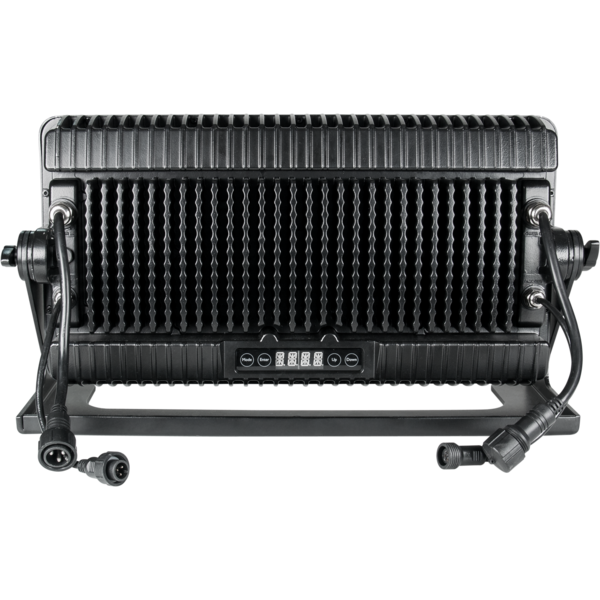

    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      bracket for hanging and positioning
    • Adaptors:
      XLR and BARE END 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Data connection:
      W-DMX receiver
    • Power connection:
      moulded IP power IN/OUT connectors
    • Dimensions (WxHxD):
      587x303x212
      mm
    • Weight:
      14,5
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x SOLAR
    • 1 x BARE END - IP connection adapter
    • 1 x 5p XLR - IP connection male adapter
    • 1 x 5p XLR - IP connection female adapter
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    SOLAR (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    SOLAR (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    SOLAR (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    SOLAR (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    SOLAR (include)
    {ProdottiDaAccessorio}
    ARCLUMIL25D38ARCLUMIL25D38
    Optic lens 25°, D.38mm
    SOLAR (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    SOLAR (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    SOLAR (optional)
    {ProdottiDaAccessorio}
    ARCEXAC3ARCEXAC3
    IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
    SOLAR (optional)
    {ProdottiDaAccessorio}
    ARCEXDC3ARCEXDC3
    IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
    SOLAR (optional)
    {ProdottiDaAccessorio}
    MICROF1G4MICROF1G4
    Micro F-1 Lite G4, 2.4GHz Transceiver, DMX/RDM, Battery Option
    SOLAR (optional)
    {ProdottiDaAccessorio}
    ARCLUMIL45D38ARCLUMIL45D38
    Optic lens 45°, D.38mm
    SOLAR (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
