Smart Bat
ORDER CODE: SMARTBAT
Share me

Immagine Principale
  • SMARTBAT
  • SMARTBAT
  • SMARTBAT
  • SMARTBAT
  • SMARTBAT
  • SMARTBAT
  • SMARTBAT
  • SMARTBAT
  • SMARTBAT
  • SMARTBAT
  • SMARTBAT
    • Smart Bat
    Code Housing Avail.
    SMARTBATBK Black
    SMARTBATWH White

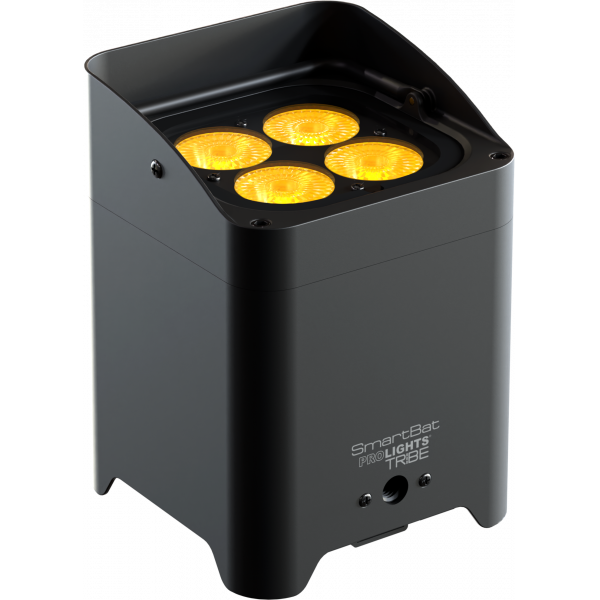

    Smart Bat is a wireless light designed to rewrite the rules for battery operated fixtures. Ensuring that high performance and good design all housed in a compact size and price that makes it affordable makes the Smart Bat ideal for every kind of event. It can be remotely controlled through proprietary wireless DMX protocol, the SmartColors app or through the IR controller - making it suitable for every level of user.

    Features:
    Wireless operated: through proprietary wireless DMX protocol or SmartColors app for IOS and Android devices
    Long lasting battery life: 12 h in colour changing mode / 8 h in full
    Available in black or white
    Adjustable foot support for tilt regulation (up to 20°)

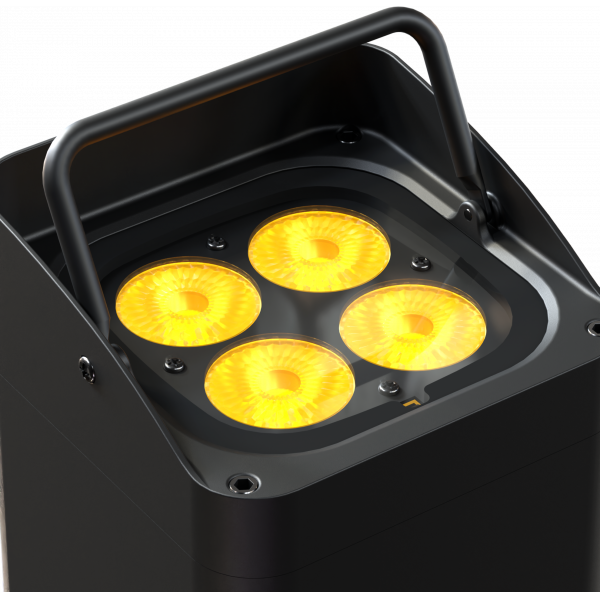

    LIGHT SOURCE
    • Source:
      4x8
      W
      RGBW LEDs
    • Luminous flux:
      1'127

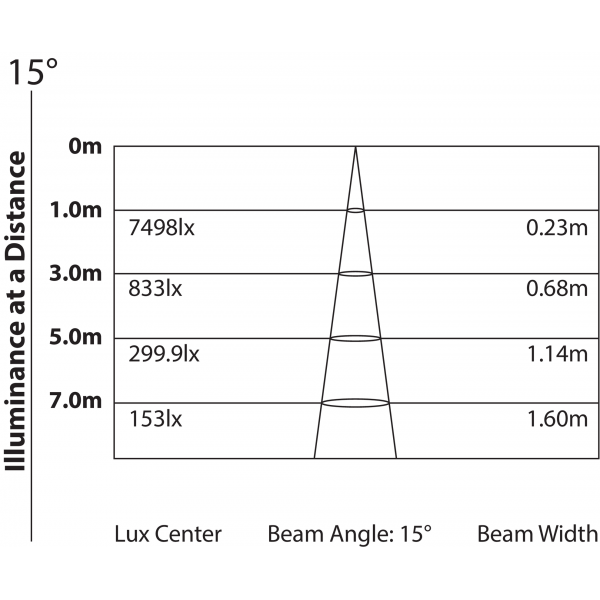

    • Lux:
      833
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      13
      °
    • Field angle:
      30
      °
    • Lens diameter:
      42
      mm
    • Additional optics:
      25° and 45° optional
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.200 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY

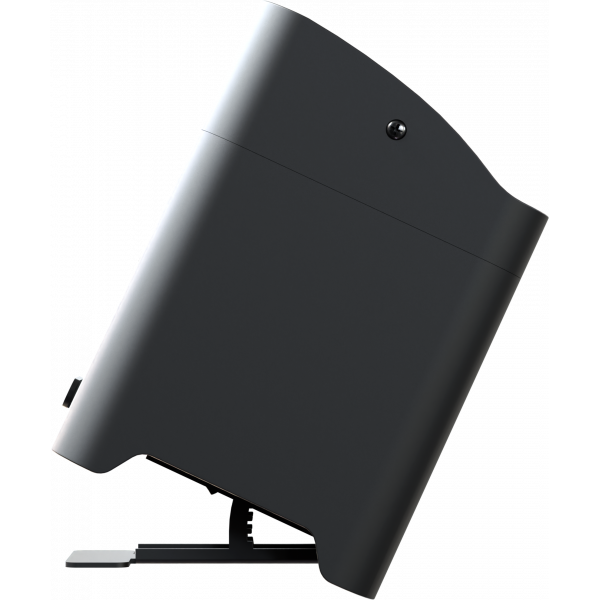

    • Tilt angle:
      °
      adjustable foot support for tilt regulation (up to 20°)
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 10
      channel
    • Wireless Control:
      integrated, proprietary protocol compatible with WIFIBOX, WDBOX
    • Display:
      LED display user interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
    • IR:
      infrared sensor controlled by remote
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      0° ~ +40°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      30
      W
    • Max power consumption (at 120V):
      31
      W
    BATTERY
    • Battery:
      24
      V
      lithium
    • Estimated battery life in colour change mode up to:
      12
      h
    • Estimated battery life in full-mode up to:
      8
      h
    • Re-charge connection:
      power cable
    • Re-charge time:
      5
      h/max
    • Battery status:
      LED battery status indicator
    PHYSICAL
    • IP rating:
      33
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      M12 threaded insert for easy clamp installation

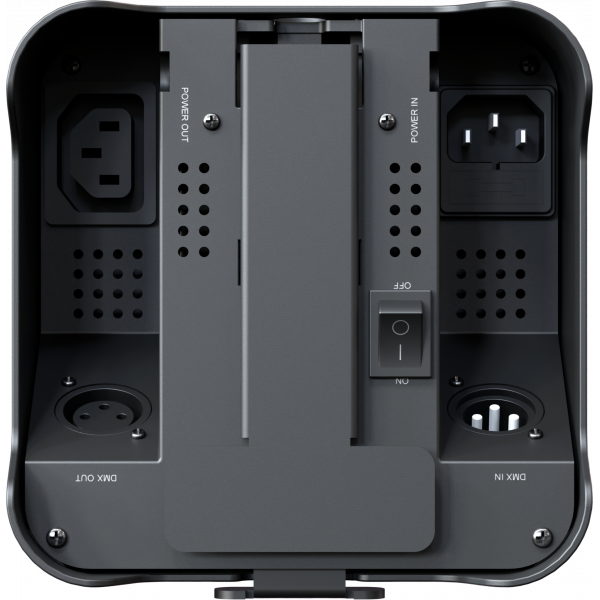

    • Signal connection:
      XLR 3p IN/OUT connectors
    • Power connection:
      IEC IN/OUT connectors

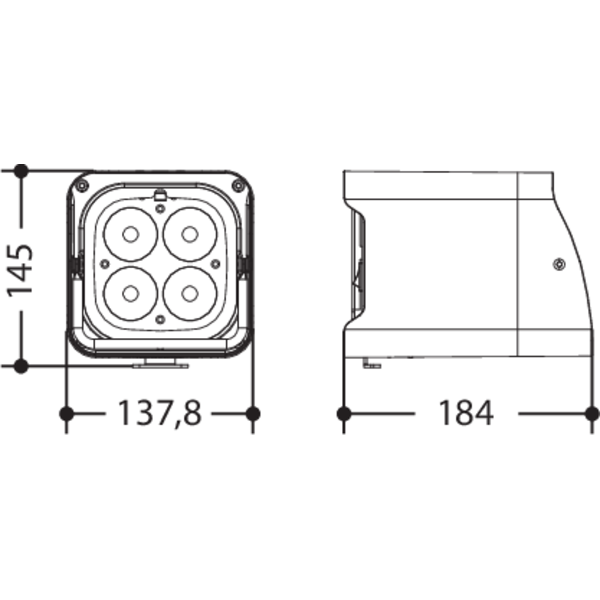

    • Dimensions (WxHxD):
      138x184x145
      mm
    • Weight:
      3,4
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x SMARTBAT
    • 1 x 1,5 meters BARE END - IEC power cable
    • 1 x LUMIPARIRCH
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    RSR0630BRSR0630B
    optional
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    VDE15SEUVDE15SEU
    optional
    Power cable VDE socket, SCHUKO plug
    TOUR53413L03TOUR53413L03
    optional
    Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
    LUMIPARIRCHLUMIPARIRCH
    include
    RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
    C6018BC6018B
    optional
    Selflock slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, black
    WIFIBOXWIFIBOX
    optional
    DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
    WDBOXWDBOX
    optional
    Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
    FCLSMARTBATFCLSMARTBAT
    optional
    Flight case for 9 SMARTBAT, 613x480x507 mm, 22 kg
    FCLSMARTBATEFCLSMARTBATE
    optional
    Flightcase for 9x SMARTBAT, 626x364x481 mm, 19 kg
    SMARTCOVERMRSMARTCOVERMR
    optional
    Mirror housing for SMARTBAT projectors.
    SMARTBATCOVERSMARTBATCOVER
    optional
    Nylon rain-proof cover for SMARTBAT projector
    SMARTBATBAGISMARTBATBAGI
    optional
    New nylon bag high resistance to contain 4 pcs SMARTBAT projectors.
    ARCLUMIL25D42ARCLUMIL25D42
    optional
    Optic lens 25°, D.42mm
    ARCLUMIL45D42ARCLUMIL45D42
    optional
    Optic lens 45°, D.42mm
    UPBOX1UP5UPBOX1UP5
    optional
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
    UPBOXPROUPBOXPRO
    optional
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

    Data sheet & specs

    File name File size Download
    Letter datasheet Smartbat_A4_DATASHEET_(EN).pdf 190KB
    Letter datasheet Smartbat_A4_DATASHEET_(IT).pdf 187KB

    User manual

    DMX chart & personalities

    File name File size Download
    VectorWorks VECTORWORKS_SYMBOLS.vwx 209KB
    VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 310MB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 236KB
    VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 310MB
    VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 478MB
    VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 478MB
    SMARTBAT Firmware rev. 1.9
    manufacturer fixture library (Link) Link
    prolights_smartbat.d4Download
    manufacturer fixture library (Link) Link
    prolight_smartbat_4ch.hedDownload
    prolight_smartbat_6ch.hedDownload
    prolight_smartbat_10ch.hedDownload
    manufacturer fixture library (Link) Link
    smartbat_4ch.fdfDownload
    smartbat_6ch.fdfDownload
    smartbat_10ch.fdfDownload
    manufacturer fixture library (Link) Link
    prolights@smartbat@4_channel@initial.xmlpDownload
    prolights@smartbat@6_channel@initial.xmlpDownload
    prolights@smartbat@10_channel@initial.xmlpDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    smartbat 4 channel.fix2Download
    smartbat 6 channel.fix2Download
    smartbat 10 channel.fix2Download
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download
    3D RFA Smartbatbk_3D_REVIT.rvt 387KB
    3D SKP Smartbat_3D_SKETCHUP.skp 628KB
    2D Smartbat_2D.dwg 816KB
    3D Smartbat_3D.dwg 670KB
    2D cad symbols Smartbatbk_2DSYMBOLS.dwg 142KB
    Technical drawing Smartbat_TECHNICAL_DRAWING.pdf 106KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Firmware update instructions

    1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

    2 Download the updater software UpBox_Tool

    3 Follow the instructions in the following guide
    -------------------------------------------------------------------------------
    Notes:
    • Firmware updates require the UPBOXPRO compatible with all Prolights products
    • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
    • UpBox_Tool  software is compatible with all UPBOX interfaces
    • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
    Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.9 STABLE 08/05/2020 Improved Dimmer Mode functionalities Rev. 1.0
