CROMOSPOT500
PROLIGHTS
end of life

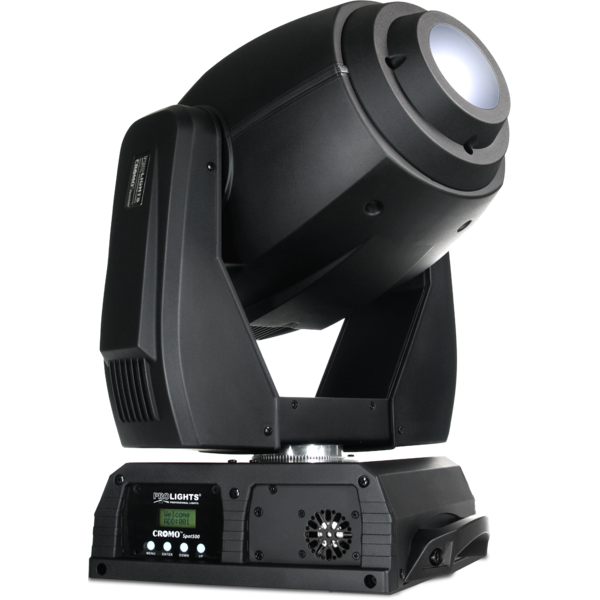

CROMOSPOT500

ORDER CODE: CROMOSPOT500

Main features:

    CROMOSPOT500 is a moving head SPOT conceived to employ the brand-new optical design with 3x60W White Luminous LED source. The high luminous capacity makes CROMOSPOT500 one of the most powerful luminaires in its range, becoming a valuable replace of traditional projectors equipped with discharge MSR/HMI 575W lamp. CROMOSPOT500 features a wide range of functions and effects, composed by 7 dichroic colour filters, 2 gobo wheels, one rotating (6 gobos) and one static (7 gobos), 3-facet prism, electronic iris and focus for limitless effect combinations.
    CROMOSPOT500 represents the last goal of LED technology applied to intelligent lighting device, allowing true advantages as minimized electric consumptions, light-weight, no-need of technical maintenance, fast moves, suitable operations.

    Light source and optics
    • 3 x 60W high-power white Luminus LED
    • Projection angle: 18°
    • High efficiency optical system
    • High definition anti-reflection lenses with achromatic coating
    • Focus: electronic focusing, from 2 m to infinity
    • LED average life span: >50'000h

    Dimmer/Shutter/Strobo

    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 1-20 flash per second

    Colour system

    • Colour wheel with 7 dichroic filters + open (linear-step-less selection)
    • Rainbow effect with speed adjustment
    • Easy calibration and maintenance by magnetic repositioning

    Effects

    • Gobos group composed by 13 gobos over 2 overlapping wheels
    • Rotating gobo wheel: 6 interchangeable gobos
    • Static gobo wheel: 7 gobos
    • Gobos rotation in both CW and CCW direction
    • “Gobo-shake” effect and continuous rotation
    • Easy access to gobo wheel for replacement
    • Effect wheel with 3 facet prism rotating in both directions at different speed
    • Iris: 4-100% high-speed
    • Easy show: built-in programs with automatic/sound activated mode enabled by LCD control panel
    • Edit mode: creation and memorization of custom shows (up to 255 steps) directly from LCD user interface

    Electronics

    • User Interface: graphic LCD display to control unit DMX addressing, general settings
    • 2 DMX available configurations: 13 channels (8 bit) and 17 channels (16 bit) for advance or basic control mode
    • Input and output signal through XLR 3p connector
    • Unit reset: through control panel or via DMX
    • Electronic self-test and check-up for diagnostics
    • Cooling: forced air, protection against overheating

    Structure and moving body:

    • High resistance and flame retardant polymer case in black colour
    • Ergonomic side handles for transportation
    • Motion Angle: Pan = 540° Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit
    • Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
    • Automatic repositioning of effects in case of accidental movements
    • Suspension and fixing: any possible working position through omega kit (included)

    Power supply

    • Power unit: 100-240V 50/60Hz
    • Max power consumption: 300W

    Weight and dimensions

    • Weight: 19,5 kg
    • Dimensions (WxHxD): 405x605x295 mm

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

FCL500S
FCL500S
(facoltativo)
Flight case for 2pcs of CROMOSPOT500, dimensions: 925x750x485 mm
