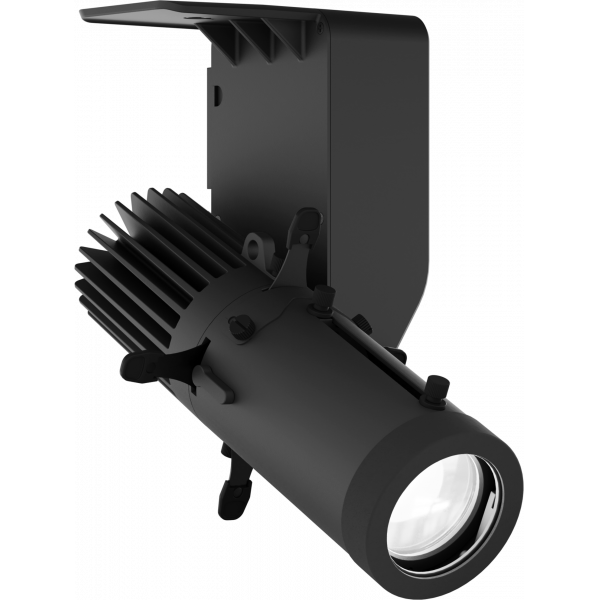

EclDisplay UNWhite
ORDER CODE: ECLDISPLAYUN
Share me

Immagine Principale
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
  • ECLDISPLAYUN
    • EclDisplay UNWhite
    Code CT Finishing Track adapter Optics Avail.
    ECLDISPLAYUN27KB 2700K Black Not included Not included
    ECLDISPLAYUN30KB 3000K Black Not included Not included
    ECLDISPLAYUN40KB 4000K Black Not included Not included
    ECLDISPLAYUN56KB 5600K Black Not included Not included
    ECLDISPLAYUN27KW 2700K White Not included Not included
    ECLDISPLAYUN30KW 3000K White Not included Not included
    ECLDISPLAYUN40KW 4000K White Not included Not included
    ECLDISPLAYUN56KW 5600K White Not included Not included

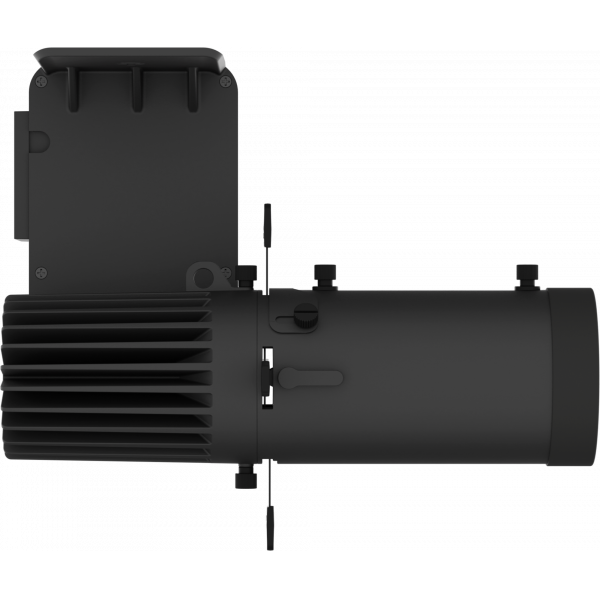

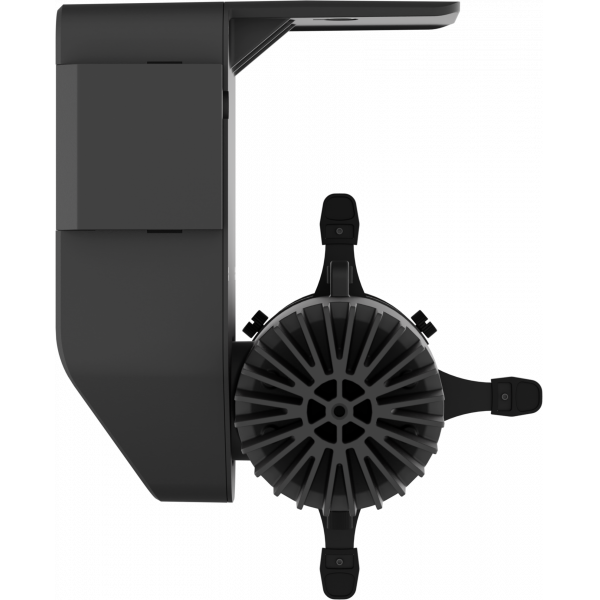

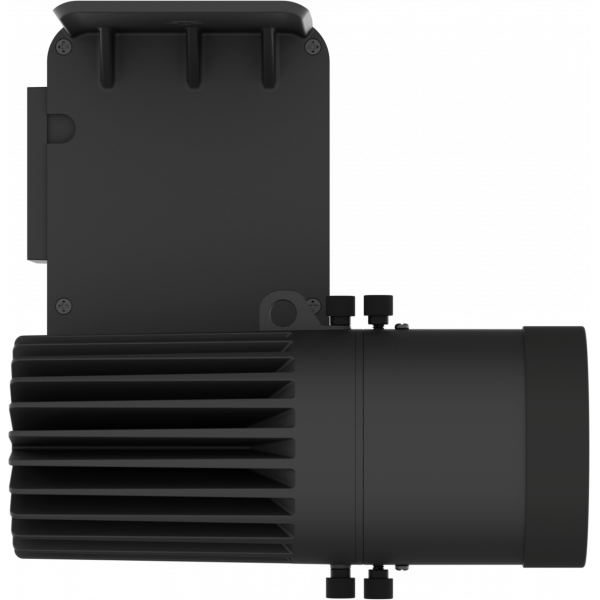

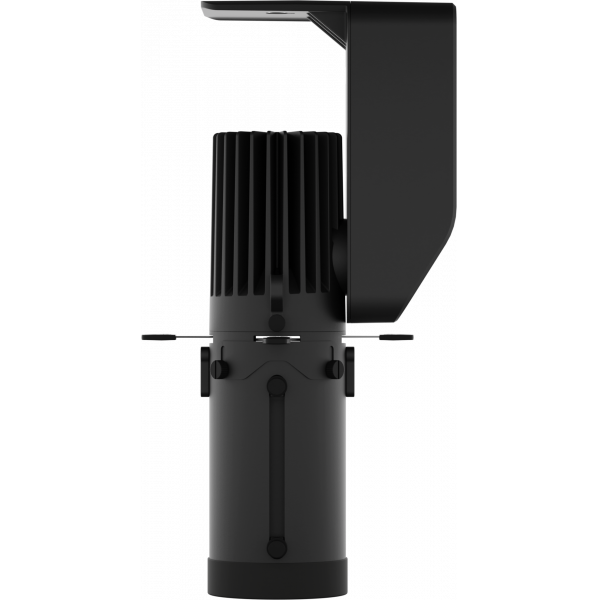

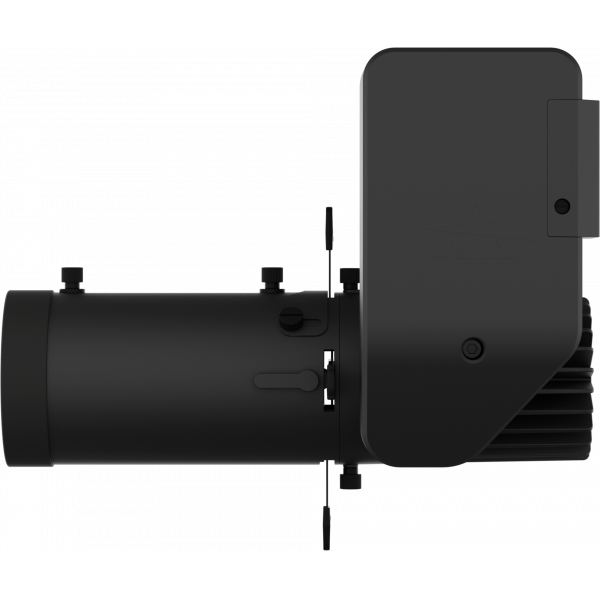

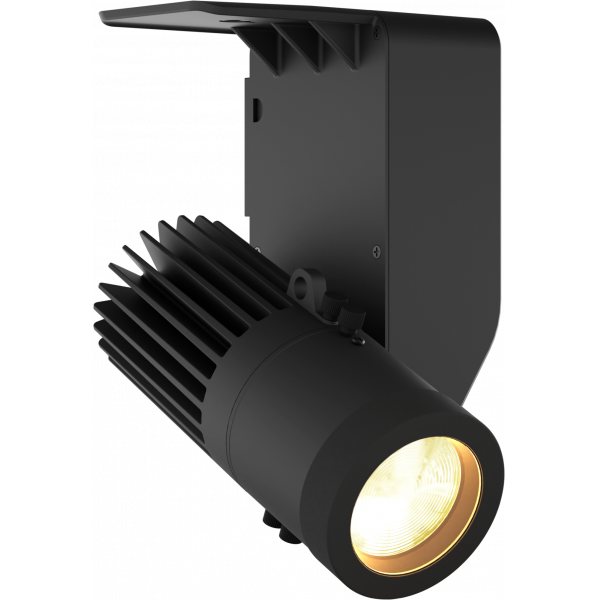

    EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.

    The EclDisplay UN can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control.

    The EclDisplay UN includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

    Features:
    Universal control through RDM, DMX, DALI Type 6, phase-cut dimming and local knob dimming
    25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing

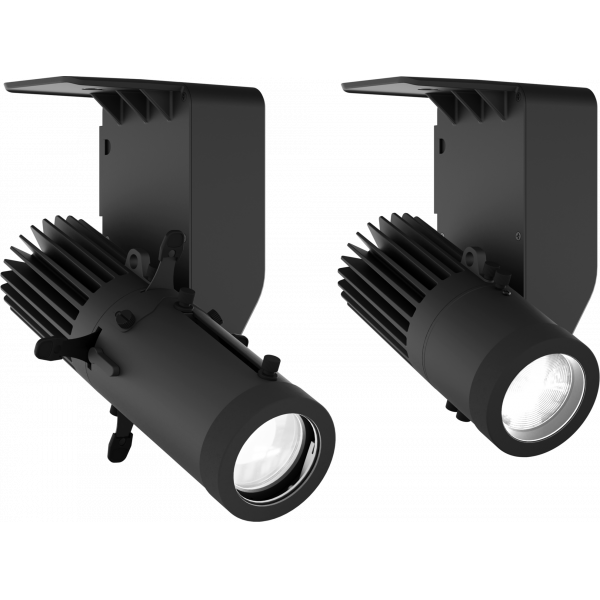

    Multiple lens options: zoomable profile or wash optics

    LIGHT SOURCE
    • Source:
      25
      W
      White COB LED
    • Luminous flux:
      (2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676
      lm
      @full
    • Luminous flux:
      (4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
    • Lux:
      (2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241
      lx
      @5 m full
    • Lux:
      (4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256
      lx
      @5 m full
    • CRI:
      90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
    • TLCI:
      87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
    • TM30 Rf:
      > 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
    • TM30 Rg:
      < 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom:
      (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8
      °
    • Other:
      360° lens rotation - optional 360° rotating barndoors and gel frame holder
    • Other:
      (profile lens) shutter blades lockable
    • Other:
      (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer
    • Static mode:
      selection of static dimmer
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:
      lockable tilt with screw
    • Body:
      aluminium die-casting
    • Body colour:
      RAL 9004 or RAL 9010
    • Other:
      cable not included - Cable diameter range: 6 - 10 mm
    CONTROL
    • Protocols:
      Local Knob, DMX, DALI Type6, RDM, cut phase dimming
    • DMX channels:
      1 / 2 / 3 / 4
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      user interface through DATAMASTER external coder (not included)
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      33
      W
    • Power factor:
      > 0,94
    • Inrush current:
      230VAC/5.7A, 110VAC/6.3A
    PHYSICAL
    • Operating Temperature:
      -10° ~ +45°
    • IP rating:
      20
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      track / hanging / ceiling installation
    • Data connection:
      screw terminal blocks
    • Power connection:
      screw terminal blocks

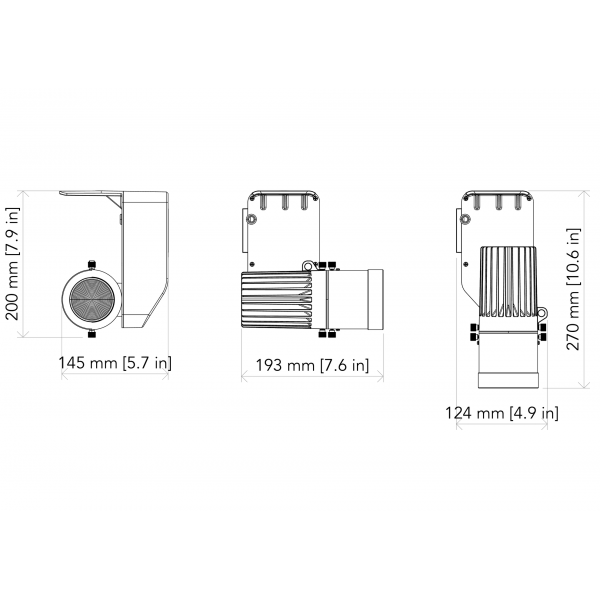

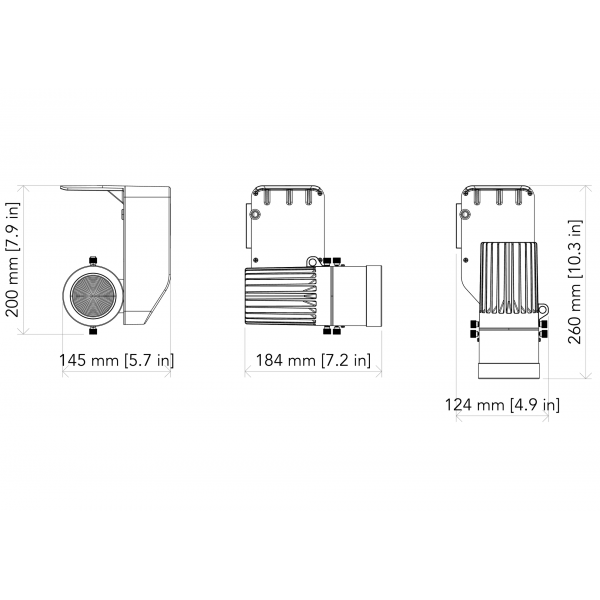

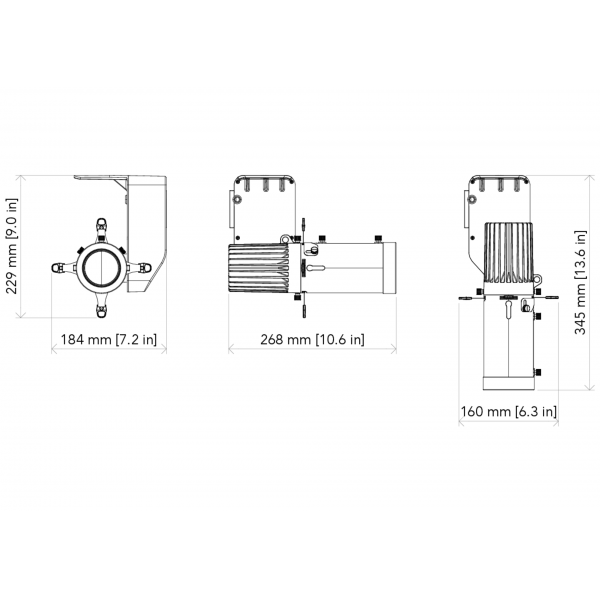

    • Dimensions (WxHxD):
      148X200x115.5
      mm
    • Weight:
      1,63
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ECLDISPLAYUN
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPPRL08BECLDISPPRL08B
    Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPPRL08WECLDISPPRL08W
    Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPWASHL1530WECLDISPWASHL1530W
    Zoomable Wash Lens 15-30° for EclDisplay, white housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPWASHL1530BECLDISPWASHL1530B
    Zoomable Wash Lens 15-30° for EclDisplay, black housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPWASHL2550BECLDISPWASHL2550B
    Zoomable Wash Lens 25-50° for EclDisplay, black housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPWASHL2550WECLDISPWASHL2550W
    Zoomable Wash Lens 25-50° for EclDisplay, white housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPPRZL1020BECLDISPPRZL1020B
    Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPPRZL2040BECLDISPPRZL2040B
    Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, black hou
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPPRZL1020WECLDISPPRZL1020W
    Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPPRZL2040WECLDISPPRZL2040W
    Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, white hou
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPCEILKITECLDISPCEILKIT
    Ceiling adapter kit for EclDisplay (without flange)
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPHSNOOTBECLDISPHSNOOTB
    Half Snoot for EclDisplay, black housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPFSNOOTBECLDISPFSNOOTB
    Full Snoot for EclDisplay, black housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPHSNOOTWECLDISPHSNOOTW
    Half Snoot for EclDisplay, white housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPFSNOOTWECLDISPFSNOOTW
    Full Snoot for EclDisplay, white housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPLOUVREBECLDISPLOUVREB
    Anti-glare louvre for EclDisplay, black housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPLOUVREWECLDISPLOUVREW
    Anti-glare louvre for EclDisplay, white housing
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPHNFFBECLDISPHNFFB
    Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPBDNFFBECLDISPBDNFFB
    Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPHNFFWECLDISPHNFFW
    Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPBDNFFWECLDISPBDNFFW
    Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPGOBOHINDBECLDISPGOBOHINDB
    Gobo holder for EclDisplay with manual index gear on board, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPCEILFLGBECLDISPCEILFLGB
    Black flange to complete the EclDisplay ceiling adapter kit, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    ECLDISPCEILFLGWECLDISPCEILFLGW
    White flange to complete the EclDisplay ceiling adapter kit, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC61002NAXTSC61002
    Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC61003NAXTSC61003
    Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC62002NAXTSC62002
    Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC62003NAXTSC62003
    Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC63002NAXTSC63002
    Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC63003NAXTSC63003
    Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC64002NAXTSC64002
    Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC64003NAXTSC64003
    Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6112NAXTSC6112
    Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6113NAXTSC6113
    Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6122NAXTSC6122
    Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6123NAXTSC6123
    Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6142NAXTSC6142
    Global Pulse XTS Connector 3-CCT DALI middle feed, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6143NAXTSC6143
    Global Pulse XTS Connector 3-CCT DALI middle feed, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6212NAXTSC6212
    Global Pulse XTS Connector 3-CCT DALI straight connector, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6213NAXTSC6213
    Global Pulse XTS Connector 3-CCT DALI straight connector, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6232NAXTSC6232
    Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSC6233NAXTSC6233
    Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6342NAXTSNC6342
    Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6343NAXTSNC6343
    Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6352NAXTSNC6352
    Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6353NAXTSNC6353
    Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6362NAXTSNC6362
    Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6363NAXTSNC6363
    Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6372NAXTSNC6372
    Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6373NAXTSNC6373
    Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6382NAXTSNC6382
    Global Pulse XTSN Connector 3-CCT DALI X connector, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6383NAXTSNC6383
    Global Pulse XTSN Connector 3-CCT DALI X connector, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6392NAXTSNC6392
    Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6393NAXTSNC6393
    Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6402NAXTSNC6402
    Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSNC6403NAXTSNC6403
    Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTS412NAXTS412
    Global Pulse XTS Connector 3-CCT DALI END cap, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTS413NAXTS413
    Global Pulse XTS Connector 3-CCT DALI END cap, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAKKT3013184NAKKT3013184
    Kit for NAXTSA682 adapter, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAKKT3013185NAKKT3013185
    Kit for NAXTSA683 adapter, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAKKT306007NAKKT306007
    Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6002, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAKKT306008NAKKT306008
    Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6003, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NASPW12SK215MNASPW12SK215M
    Global Pulse Track clip wire suspension set 1.5m, 150N, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NASPW12SK25MNASPW12SK25M
    Global Pulse Track clip wire suspension set 5m, 150N, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NASPW12SK315MNASPW12SK315M
    Global Pulse Track clip wire suspension set 1.5m, 150N, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NASPW12SK35MNASPW12SK35M
    Global Pulse Track clip wire suspension set 5m, 150N, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSA57129NAXTSA57129
    Global Pulse Rotating Nipples 3-Circuit Adapters, M10, H 12mm, D 7,4mm
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAXTSA55129NAXTSA55129
    Global Pulse Rotating Nipples 3-Circuit Adapters, M13, H 12mm, D 9mm
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NAGAM109NAGAM109
    Global Pulse Nut M10 for NAXTSA57129
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NASKB122NASKB122
    Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    NASKB123NASKB123
    Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    PLCPW93075PLCPW93075
    Power PVC cable H05VV-F 3G0,75, 1 meter lenght
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    PLCDX53D5PLCDX53D5
    120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    PLCPD7501P14DPLCPD7501P14D
    Power & DMX 120 Ohm, 1 meter length
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    PLCPD7501P68DPLCPD7501P68D
    Power & DMX 120 Ohm
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    PLCYA7501P14DPLCYA7501P14D
    YY splitter cable Power 3x0.75 mm2 + 5p IN/OUT DMX 120 Ohm, bare end, 1 meter
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    EUT997592EUT997592
    EUTRAC multiAdapter with data bus option, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    EUT997596EUT997596
    EUTRAC multiAdapter with data bus option, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    EUT990662EUT990662
    Mounting nut66 for EUT99759, black
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    EUT990666EUT990666
    Mounting nut66 for EUT99759, white
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    EUT996980EUT996980
    Data bus tap EUT99759
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    UPBOXPROUPBOXPRO
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
    ECLDISPLAYUN (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Letter datasheet Ecldisplayun_A4_DATASHEET_(EN).pdf 3MB
    Letter datasheet Ecldisplayun_A4_DATASHEET_(IT).pdf 4MB
    Tender Specification Ecldisplayun_TENDER_SPECIFICATION.pdf 4MB

    User manual

    File name File size Download
    User manual Ecldisplayun_USER_MANUAL_EN.pdf 7MB
    General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB

    DMX chart & personalities

    File name File size Download
    DMX chart Ecldisplayun_DMX_CHARTS.pdf 77KB
    VectorWorks +ECLDISPWASHL2550B_VECTORWORKS_SYMBOLS.vwx 442KB
    VectorWorks +ECLDISPWASHL2550B_VECTORWORKS_SYMBOLS.vwx 442KB
    VectorWorks +ECLDISPWASHL2550B_VECTORWORKS_SYMBOLS.vwx 442KB
    VectorWorks +ECLDISPWASHL2550B_VECTORWORKS_SYMBOLS.vwx 442KB
    VectorWorks +ECLDISPWASHL1530B_VECTORWORKS_SYMBOLS.vwx 440KB
    VectorWorks +ECLDISPPRZL2040B_VECTORWORKS_SYMBOLS.vwx 496KB
    VectorWorks +ECLDISPPRZL2040B_VECTORWORKS_SYMBOLS.vwx 496KB
    VectorWorks +ECLDISPWASHL1530B_VECTORWORKS_SYMBOLS.vwx 440KB
    VectorWorks +ECLDISPPRZL2040B_VECTORWORKS_SYMBOLS.vwx 496KB
    VectorWorks +ECLDISPPRZL2040B_VECTORWORKS_SYMBOLS.vwx 496KB
    VectorWorks +ECLDISPWASHL1530B_VECTORWORKS_SYMBOLS.vwx 440KB
    VectorWorks +ECLDISPWASHL1530B_VECTORWORKS_SYMBOLS.vwx 440KB
    VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
    VectorWorks +ECLDISPWASHL2550W_VECTORWORKS_SYMBOLS.vwx 554KB
    VectorWorks ECLDISPWASHL1530W_VECTORWORKS_SYMBOLS.vwx 551KB
    VectorWorks +ECLDISPPRZL2040W_VECTORWORKS_SYMBOLS.vwx 532KB
    VectorWorks +ECLDISPWASHL2550W_VECTORWORKS_SYMBOLS.vwx 555KB
    VectorWorks +ECLDISPWASHL1530W_VECTORWORKS_SYMBOLS.vwx 552KB
    VectorWorks +ECLDISPPRZL2040W_VECTORWORKS_SYMBOLS.vwx 641KB
    VectorWorks +ECLDISPWASHL2550W_VECTORWORKS_SYMBOLS.vwx 556KB
    VectorWorks +ECLDISPWASHL1530W_VECTORWORKS_SYMBOLS.vwx 554KB
    VectorWorks +ECLDISPPRZL2040W_VECTORWORKS_SYMBOLS.vwx 638KB
    VectorWorks +ECLDISPWASHL2550W_VECTORWORKS_SYMBOLS.vwx 556KB
    VectorWorks +ECLDISPWASHL1530W_VECTORWORKS_SYMBOLS.vwx 558KB
    VectorWorks +ECLDISPPRZL2040W_VECTORWORKS_SYMBOLS.vwx 641KB
    VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
    ECLDISPLAYUN Firmware rev. 1.4
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    IES prolights_ecldisplay(un-dat-cc)_profile2040_ies files.zip 11KB
    LDT prolights_ecldisplay(un-dat-cc)_profile2040_ldt files.zip 8KB
    IES prolights_ecldisplay(un-dat-cc)_wash 1530_ies files.zip 11KB
    LDT prolights_ecldisplay(un-dat-cc)_wash 1530_ldt files.zip 9KB
    IES prolights_ecldisplay(un-dat-cc)_wash2550_ies files.zip 9KB
    LDT prolights_ecldisplay(un-dat-cc)_wash2550_ldt files.zip 7KB
    PDF Photometrics Ecldisplayun_WASH25-50_PHOTOMETRIC_REPORT.pdf 3MB
    PDF Photometrics Ecldisplayun_PROFILE10-20_PHOTOMETRIC_REPORT.pdf 4MB
    PDF Photometrics Ecldisplayun_WASH15-30_PHOTOMETRIC_REPORT.pdf 3MB
    PDF Photometrics Ecldisplayun_PROFILE20-40_PHOTOMETRIC_REPORT.pdf 3MB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    3D sketchup ECLDISPLAYUN_3D_SKETCHUP.zip 3MB
    3D revit ECLDISPLAYUN_3D_REVIT.zip 1MB
    2D ECLDISPLAYUN_2D.zip 26MB
    3D ECLDISPLAYUN_3D.zip 2MB
    2D cad symbols ECLDISPLAYUN_2DSYMBOLS.zip 804KB
    Technical drawing ECLDISPLAYUN_TECHNICAL DRAWINGS.zip 748KB

    Tech docs

    File name File size Download

    Software

    File name File size Download
    Software Prolights Dialux Plug-In 0KB

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.4 STABLE 28/03/2023 Improvements:
    • General improvements to signal stability
    		 Rev. 1.0
    1.2 STABLE 18/03/2022 Fixed bugs:
    • Fixed bug on DALI protocol: unable to ungroup fixture.
    • Fixed bug on DALI protocol: unable to autoaddress fixture via Discovery function, multiple expansion discovery needed.

    Info Request
