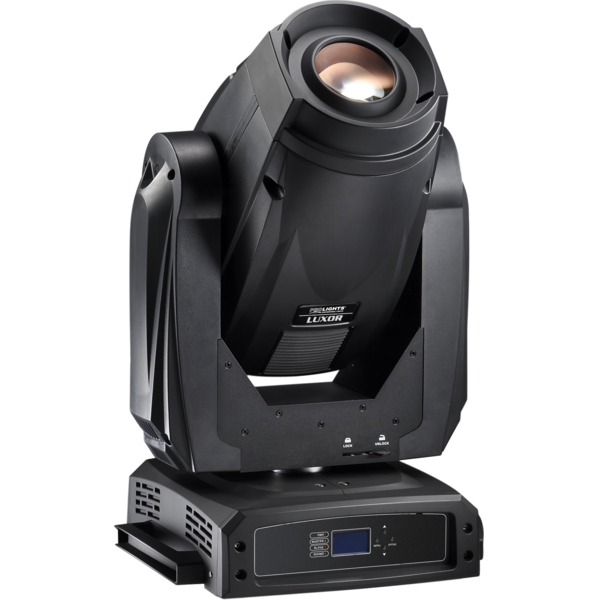

  • LUXOR is the new concept of Spot moving-head, engineered to outperform in terms of brightness and functions the traditional projectors equipped with MSR700W of the old generation.
    The HYBRID design of the optical group and on-board features make LUXOR a creative and versatile tool to perform the top-class SPOT performance,  and even long-throw BEAM effects and wide-coverage WASH with unexpected results.
    LUXOR performs an extreme brightness level and a total homogeneous projection thanks to the combination between the precise optic group and the new lamp technology Platinum MSD15R 300W by Philips with short-arc integrated reflector, granting the highest lumen/watt ratio in the market.
    In addition to offering significant energy savings, LUXOR has been designed in a very compact and ultra-light structure, fast and easy to install, proving to be the perfect solution for Rental companies.
    The remarkable versatility of this projector is the result of a wide effect rage with unlimited possibilities: 6°-26° (1:4) zoom, 7 colours, CMY color mixing, 22 gobos (8 rotating), 3f prysm, frost, focus and iris.
    The movements are precise and fast, thanks to the light-weight aluminum main structure and the 3step motor engine used for Pan/Tilt, and furthermore silenced fan allows LUXOR to be used for theatres and broadcasting where noise is forbidden.


    Lamp
    • Philips MSD Platinum 15R 300W
    • Colour temperature: 8000 K
    • Luminous flux: 14550 lm
    • Average life span: 2000 h

    Optics
    • HQ glass optics
    • Short-arc integrated reflector to maximize efficiency
    • 6°-26° (1:4) electronic linear zoom
    • Lamp featuring built-in parabolic reflector guaranteeing highest uniformity and precision
    • Focus: electronic focusing
    • Light output: 33000 lux @ 5mt (6°)

    Dimmer / shutter / strobe
    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 8 flash per second (with random strobe effect)

    Colour system
    • Colour wheel with 9 dichroic filters + open (linear-step-less selection)
    • 3200K colour temperature and UV filters
    • Linear CMY color mixing
    • CMY color preset by DMX on virtual wheel
    • Bidirectional rainbow effect

    Effects
    • 1st Gobo wheel: 8 dichroic rotating Gobos
    • 2nd Gobo wheel: 14 metallic fixed Gobos
    • 112 possible overlapping gobos combinations
    • "Gobo-shake" effect
    • Gobo change with synchronized blackout
    • Easy access to gobo wheels for replacement
    • Linear frost filter
    • 3-facet prism effect, bi-directional rotation with variable speed
    • 5-100% motorized linear iris

    Electronics
    • 3,4'' LCD graphic black display for simplified access to control menu, configuration and DMX addressing
    • Battery powered display
    • DMX configuration: 23 channels for full control
    • RDA: Remote DMX addressing
    • 2,4GHz WDMX receiver by Wireless Solutions (optional)
    • Input and output signal through 3p and 5p XLR connectors
    • Remote ON/OFF lamp control by DMX
    • Remote unit reset by DMX
    • Electronic self-test and check-up for diagnostics
    • Lamp life timer
    • Thermal sensor monitoring optimum lamp temperature
    • "ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
    • Cooling: filtered forced ventilation with variable speed low-noise fans

    Structure and moving body
    • Aluminum structure with hi-resistance polycarbonate cover, black colour
    • Ergonomic side handles for transportation
    • 3-step motor engine for Pan/Tilt moves
    • Motion Angle: Pan = 540°  Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit
    Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
    • Modular assembly to allow easy maintenance operations
    • Feedback automatic repositioning
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system

    Power supply
    • Electronic ballast: 100-240V 50/60Hz universal power supply
    • Power consumption: 510W

    Weight and dimensions
    • Weight: 23 kg
    • Dimensions (WxHxD): 649x435x344 mm
