Lumipar 7HPro
ORDER CODE: LUMIPAR7HPRO
Share me

Immagine Principale
  • LUMIPAR7HPRO
  • LUMIPAR7HPRO
  • LUMIPAR7HPRO
  • LUMIPAR7HPRO

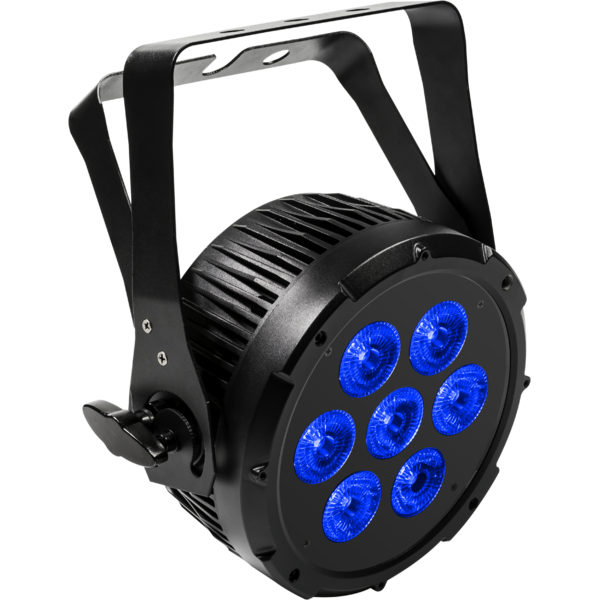

    • LUMIPAR7HPRO is a super-slim PAR LED for professional use, designed to be a powerful wash light in rental/touring applications. The high efficiency RGBWAP / FC LED light source, the ultra-thin design and absence of fans make LUMIPAR7HPRO a big innovation compared to traditional PAR CANS, offering higher versatility, easy setup and reduced carrying volume.

    Features:
    7x12 W RGBAW + UV LEDs
    Extensive colour palette and powerful output
    Flicker-free operation for IMAG and broadcast

    LIGHT SOURCE
    • Source:
      7x12
      W
      RGBWAP LEDs
    • Luminous flux:
      1'939
      lm
    • Lux:
      (15°) 982,6
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      25
      °
    • Field angle:
      34
      °
    • Lens diameter:
      42
      mm
    • Additional optics:
      15° and 45° (optional)
    COLOUR SYSTEM
    • Colour mixing:
      RGBWAP / FC
    • White presets:
      3.200 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      3 / 6 / 8 / 12
      channel
    • Display:
      LCD display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      5
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      54
      W
    • Max power consumption (at 120V):
      54
      W
    • Output (at 230V):
      24
      units on a single power line
    PHYSICAL
    • IP rating:
      44
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      253x201x244
      mm
    • Weight:
      3,2
      kg
